Description
Premium S2 Steel
Tough Outside,
Strong Inside
Chrome Vanadium Steel
Exceptional
Performance
True to Size Fitting
Fast & Easy Placement
Chamfered
Ends
Easy Identification
Large
Stamped Sizing
Description
The Stubby XZN/Triple Square bits in this set are made from heat-treated S2 steel alloy to withstand long-term use, the sockets are composed of Chrome-Vanadium to provide optimal strength and durability. The pieces also have a chrome plating to prevent rusting and corrosion. This set comes with a convenient blow-molded storage box for portability and protection. These are perfect for use with breaker bars, torque wrenches and ratchets (not for use with impact tools). They are compatible with most European vehicles. This set meets and exceeds ANSI standards and comes with a lifetime replacement guarantee.
ASME
Meets and exceeds ASME B107.110 standards.
Lifetime Guarantee
We believe in our products enough to back them up with a lifetime warranty to give you more peace of mind about your purchase.
Technical Data
Technical Data
| Part Number | Description | L (in.) | W (in.) | wt (lbs.) |
|---|---|---|---|---|
| CP30350 | 10-Piece Stubby XZN Bit Sockets Set, Metric | 13.00 | 9.80 | 5.91 |
XZN
|
1/4" Dr.: M4, M5, M6
3/8" Dr.: M8, M9, M10, M12 |
|||
XZN Tamper
|
1/2" Dr.: MT14, MT16, MT18 | |||
| Part Number | Drive | Size | D1 (in.) | D2 (in.) | L (in.) | S (in.) | wt. (lbs.) |
|---|---|---|---|---|---|---|---|
| CP30351 | 1/4 | M4 | 0.13 | 0.46 | 1.26 | 0.51 | 0.01 |
| CP30352 | 1/4 | M5 | 0.18 | 0.46 | 1.26 | 0.51 | 0.01 |
| CP30353 | 1/4 | M6 | 0.22 | 0.46 | 1.26 | 0.51 | 0.01 |
| CP30354 | 3/8 | M8 | 0.27 | 0.7 | 1.49 | 0.47 | 0.05 |
| CP30355 | 3/8 | M9 | 0.35 | 0.7 | 1.49 | 0.47 | 0.05 |
| CP30356 | 3/8 | M10 | 0.36 | 0.7 | 1.49 | 0.47 | 0.07 |
| CP30357 | 3/8 | M12 | 0.43 | 0.7 | 1.49 | 0.47 | 0.08 |
| CP30358 | 1/2 | MT14 | 0.5 | 0.93 | 1.97 | 0.5 | 0.22 |
| CP30359 | 1/2 | MT16 | 0.6 | 1.01 | 1.97 | 0.5 | 0.28 |

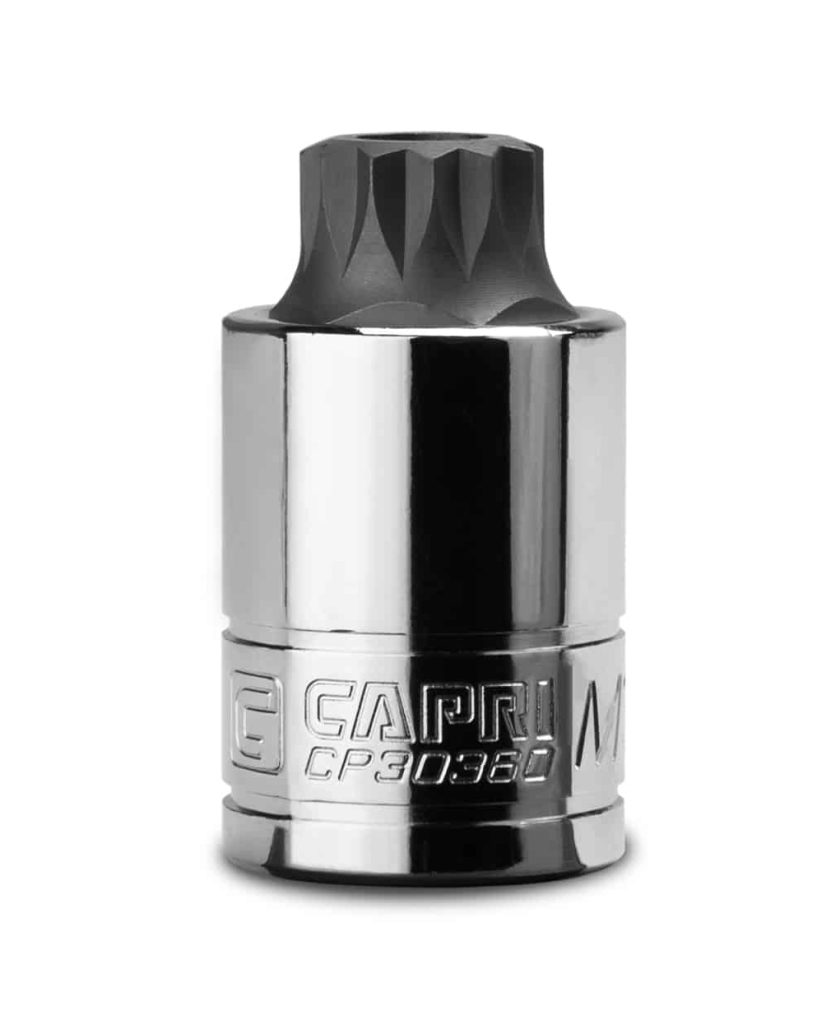

| CP30360 | 1/2 | MT18 | 0.64 | 1.09 | 1.97 | 0.5 | 0.33 |
