MaxChrome Master Socket Set
Polished to perfection.
Chrome
Vanadium Steel
6-Point WaveDrive Design
Flawless

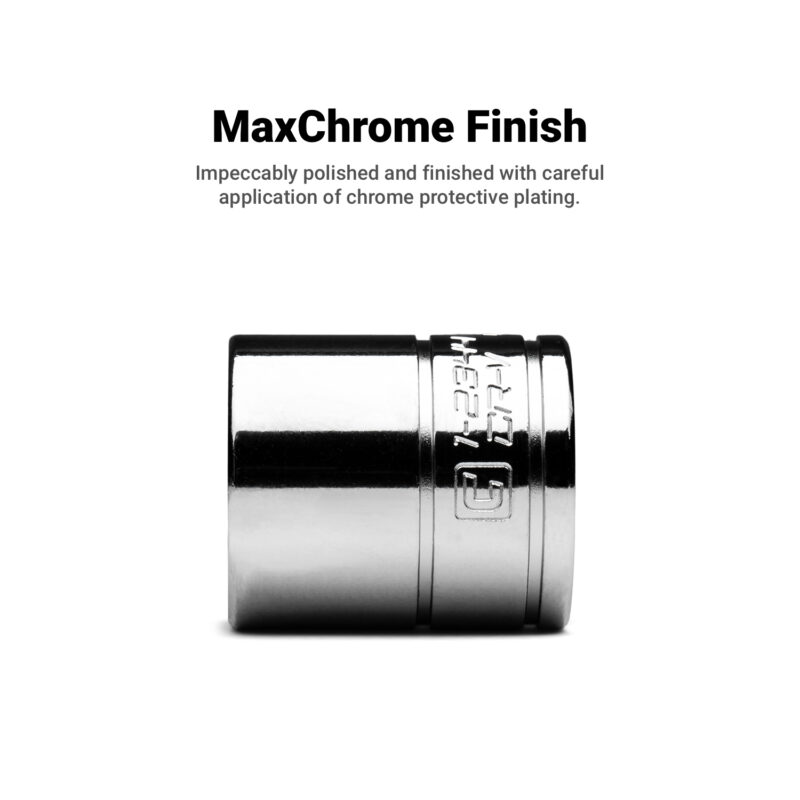

MaxChrome Finish
Large Stamped Sizing
We Stand Behind Our Products 100%, Period.
Contents
3/8" Dr. Shallow Sockets
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm
3/8" Dr. Deep Sockets
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm
Description
The Capri Tools 3/8 Drive Chrome Socket Set is a complete collection of most frequently used sockets without skipping sizes. Organized by size in a specially made socket tray, the sockets stay where they are as you carry them around. We use premium Chrome Vanadium steel tempered with our proprietary heat treatment process to make these sockets. They are durable and withstand more torque. Each item underwent careful polishing and protective plating process to achieve our own MaxChrome finish. The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage. Meets and exceeds ASME B107.110 standards.
Technical Data
| Part Number | Drive | Length | Configuration | L (in.) | W (in.) | wt (lbs.) |
|---|---|---|---|---|---|---|
| CP12320-30MSDR | 3/8" | Shallow + Deep | Aluminum Tray | 14.00 | 6.00 | 5.35 |
| CP12320-30MSD | Sockets Only | 1.60 |
| Part Number | Size (mm) | L (in.) | W1 (in.) | W2 (in.) | D1 (in.) | D2 (in.) | WT (lbs.) |
|---|---|---|---|---|---|---|---|
| CP12330 | 6 | 1.1 | 0.39 | 0.66 | 0.49 | 0.39 | 0.04 |
| CP12331 | 7 | 1.1 | 0.41 | 0.66 | 0.49 | 0.4 | 0.03 |
| CP12332 | 8 | 1.1 | 0.45 | 0.66 | 0.51 | 0.41 | 0.04 |
| CP12333 | 9 | 1.1 | 0.52 | 0.66 | 0.5 | 0.38 | 0.04 |
| CP12334 | 10 | 1.1 | 0.56 | 0.66 | 0.5 | 0.4 | 0.03 |
| CP12335 | 11 | 1.1 | 0.61 | 0.66 | 0.5 | 0.41 | 0.03 |
| CP12336 | 12 | 1.1 | 0.7 | 0.7 | - | 0.41 | 0.05 |
| CP12337 | 13 | 1.1 | 0.72 | 0.72 | - | 0.37 | 0.06 |
| CP12338 | 14 | 1.1 | 0.77 | 0.77 | - | 0.56 | 0.07 |
| CP12339 | 15 | 1.1 | 0.81 | 0.81 | - | 0.57 | 0.08 |
| CP12340 | 16 | 1.1 | 0.86 | 0.85 | - | 0.55 | 0.08 |
| CP12341 | 17 | 1.18 | 0.93 | 0.93 | - | 0.62 | 0.12 |
| CP12342 | 18 | 1.18 | 0.97 | 0.97 | - | 0.62 | 0.16 |
| CP12343 | 19 | 1.18 | 1 | 1 | - | 0.61 | 0.13 |
| CP12344 | 20 | 1.18 | 1.09 | 1.09 | - | 0.72 | 0.15 |
| CP12345 | 21 | 1.18 | 1.09 | 1.09 | - | 0.73 | 0.17 |
| CP12346 | 22 | 1.18 | 1.17 | 1.17 | - | 0.71 | 0.2 |
| Part Number | Size (mm) | L (in.) | W1 (in.) | W2 (in.) | D1 (in.) | D2 (in.) | WT (lbs.) |
|---|---|---|---|---|---|---|---|
| CP12362 | 8 | 2.48 | 0.47 | 0.66 | 1.32 | 0.72 | 0.1 |
| CP12363 | 9 | 2.48 | 0.52 | 0.66 | 1.31 | 0.66 | 0.1 |
| CP12364 | 10 | 2.48 | 0.56 | 0.66 | 1.3 | 1.03 | 0.1 |
| CP12365 | 11 | 2.48 | 0.62 | 0.66 | 1.3 | 1.05 | 0.15 |
| CP12366 | 12 | 2.49 | 0.7 | 0.7 | - | 0.92 | 0.2 |
| CP12367 | 13 | 2.49 | 0.73 | 0.73 | - | 0.81 | 0.16 |
| CP12368 | 14 | 2.48 | 0.77 | 0.77 | - | 1.02 | 0.17 |
| CP12369 | 15 | 2.48 | 0.81 | 0.81 | - | 1.04 | 0.2 |
| CP12370 | 16 | 2.48 | 0.86 | 0.86 | - | 0.97 | 0.2 |
| CP12371 | 17 | 2.48 | 0.93 | 0.93 | - | 0.96 | 0.25 |
| CP12372 | 18 | 2.48 | 0.96 | 0.96 | - | 1.01 | 0.25 |
| CP12373 | 19 | 2.5 | 1.01 | 1.01 | - | 1.23 | 0.3 |
| CP12374 | 20 | 2.5 | 1.09 | 1.09 | - | 0.97 | 0.35 |
| CP12375 | 21 | 2.5 | 1.09 | 1.09 | - | 1.08 | 0.35 |
| CP12376 | 22 | 2.5 | 1.17 | 1.17 | - | 1.36 | 0.4 |
Nathan Sturman –
Great quality and zero size skips in this set.
