Description

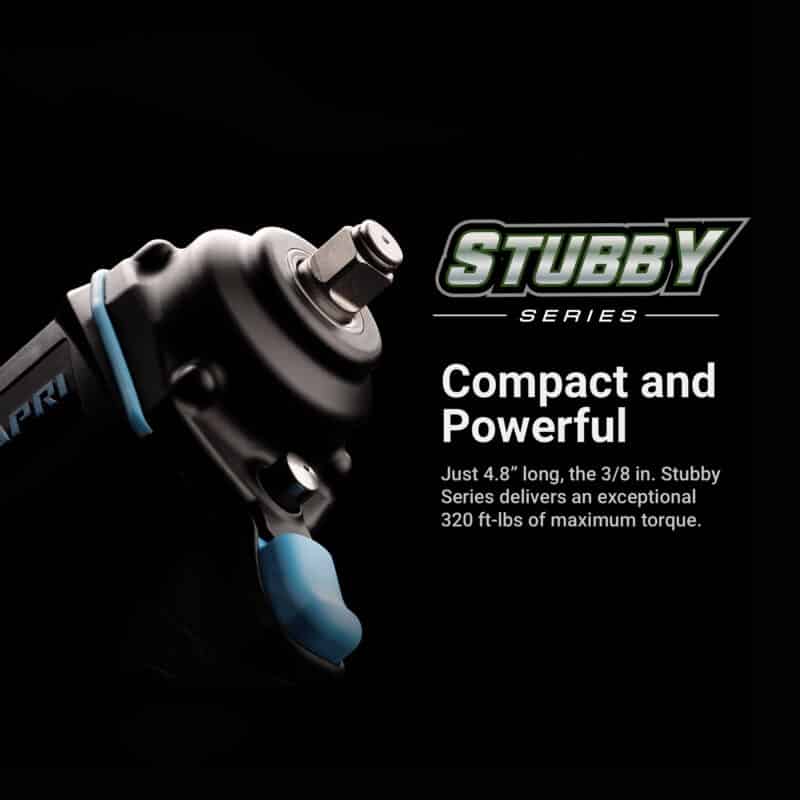

Compact. Quiet. Energy Saving.
Powerful
and Compact
It is also best in class in its lightness and small footprint at just 4.8 in. long. Designed with a compact body that lets you maneuver easily in cramped areas.
300 ft-lbs
Max Torque
The 3/8″ Drive delivers an exceptional
300 ft-lbs of maximum torque.
Dual Air
Motor Design
The Twin Power series is equipped with patented dual cylinder air motor; it deploys air more efficiently while generating more torque.
Ergonomic
Soft Grip Handle
Comfortable to hold for long hours and helpful in cold-weather situations.
One Hand Operation.
Ergonomic pistol grip and a large forward/reverse thumb dial. Top support handle enhances handling and maneuverability.
Add Your Heading Text Here
Exceptional Performance.
Nut Busting Torque (ft-lbs.)
810
Free Speed (RPM)
7,500
Air Consumption (CFM)
4.2
Max Reverse (ft-lbs.)
300
Blows per Min (BPM)
1,400

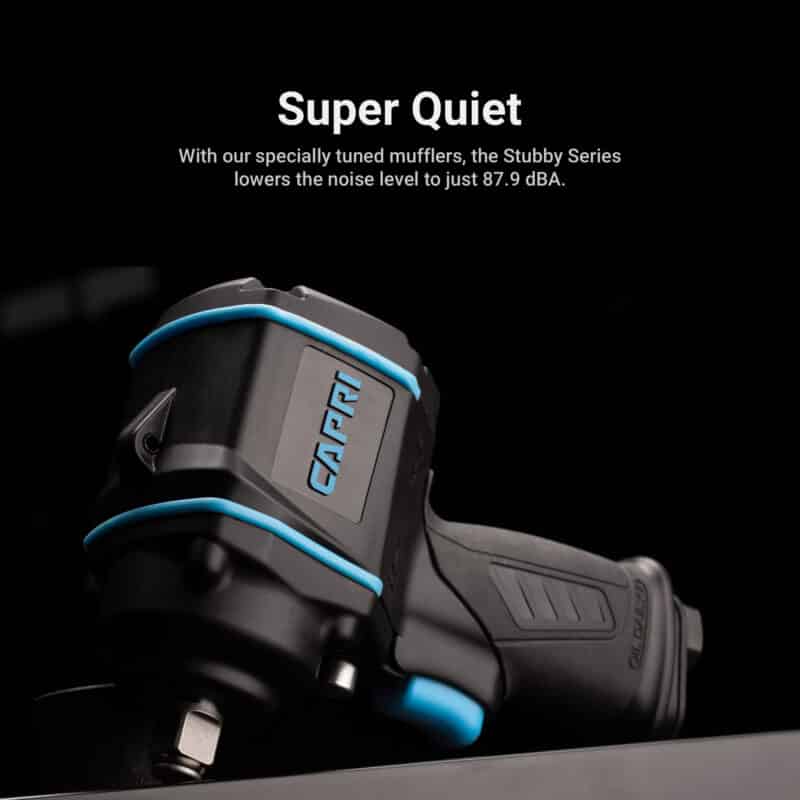

Noise Level (dBA)
87.9
We Stand Behind Our Products 100%, Period.
Description

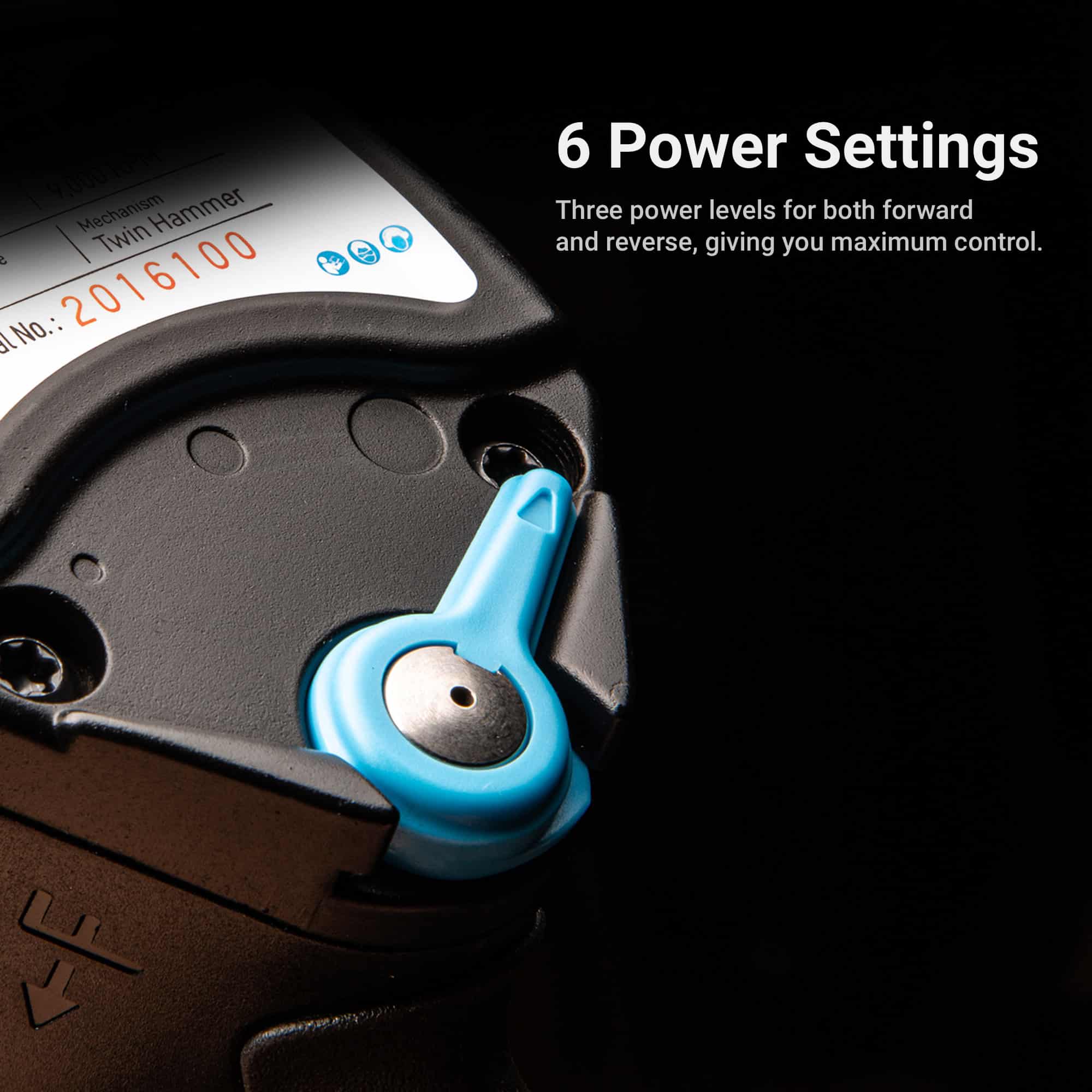

The Capri Tools Stubby Series Impact Wrench is the ultimate compact impact wrench; compact, quiet, low vibration, and powerful. It’s 4.8 in. long compact body lets you maneuver easily in cramped areas. It is packed with a powerful 320 ft. lbs. of maximum reverse torque and 300 ft. lbs. of forward torque. The composite housing is light and durable. It operates with low vibration at only 4.8 m/s2 and helps reduce fatigue over long periods of use. One hand operation with forward/reverse toggle and power setting thumb dial. 6 settings total (3 forward and 3 reverse) gives you maximum control. It operates quietly at 87.9 dBA with low air consumption at only 4.2 CFM at 90 PSI. Weights only 2.86 lbs. Comes with 1/4 in. NPT air inlet.
Technical Data
| Model No. | CP35100 | CP35105 |
|---|---|---|
| Drive Size (in.) | 3/8 | 1/2 |
| Nut Busting Torque (ft-lbs) | 810 | 1,400 |
| Max. Torque (ft-lbs) | 300 | 400 |
| Working Torque (ft-lbs) | 700 | 1,400 |
| Blow Per Min (BPM) | 1,400 | 1,700 |
| Free Speed (RPM) | 7,500 | 9,000 |
| Avg Air Consumption (CFM) | 4.2 | 4.2 |
| Air Inlet (NPT) | 1/4" | 1/4" |
| Length (in.) | 4.80 | 4.80 |
| Height (in.) | 7.75 | 7.75 |
| Weight (lbs.) | 2.86 | 2.86 |
beardedseabee82 –
Have been using now daily in semi truck shop now for several months, has mever dissapointed. Occasionally will come across that rusted 1/2″ or 5/8″ bolt (midwest winters work wonders) and have to break out 1/2″ impact. Have done several exhaust manifolds and many other drive line repairs with this lil stubby, highly recommend!
