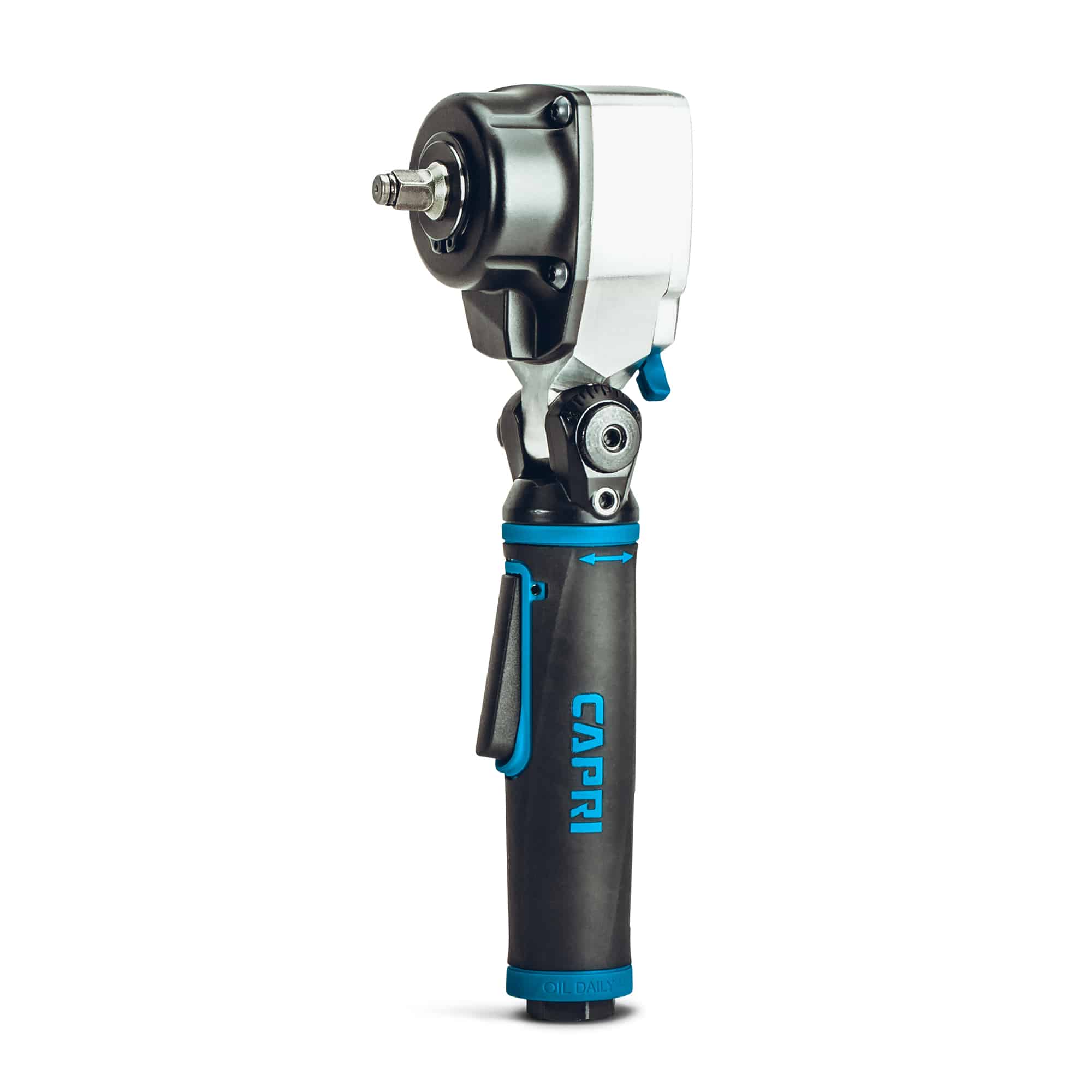

Flex-Head Angle Impact Wrench
120° Flexible Head, 360° Rotatable Handle
A Flexible Power Player
The Capri Tools Flex-Head Angle Impact Wrench delivers high-torque performance with a compact, adjustable head designed to access tight and obstructed fasteners. It combines impact-rated strength with flexible positioning—making it the go-to solution for automotive, industrial, and shop environments where space is limited but power is non-negotiable.
120° Flexible Wrench Head
The ultra-compact wrench head is tiltable up to 60° forward and up to 60° backward, letting you easily reach those hidden bolts.
360° Rotatable Trigger Handle

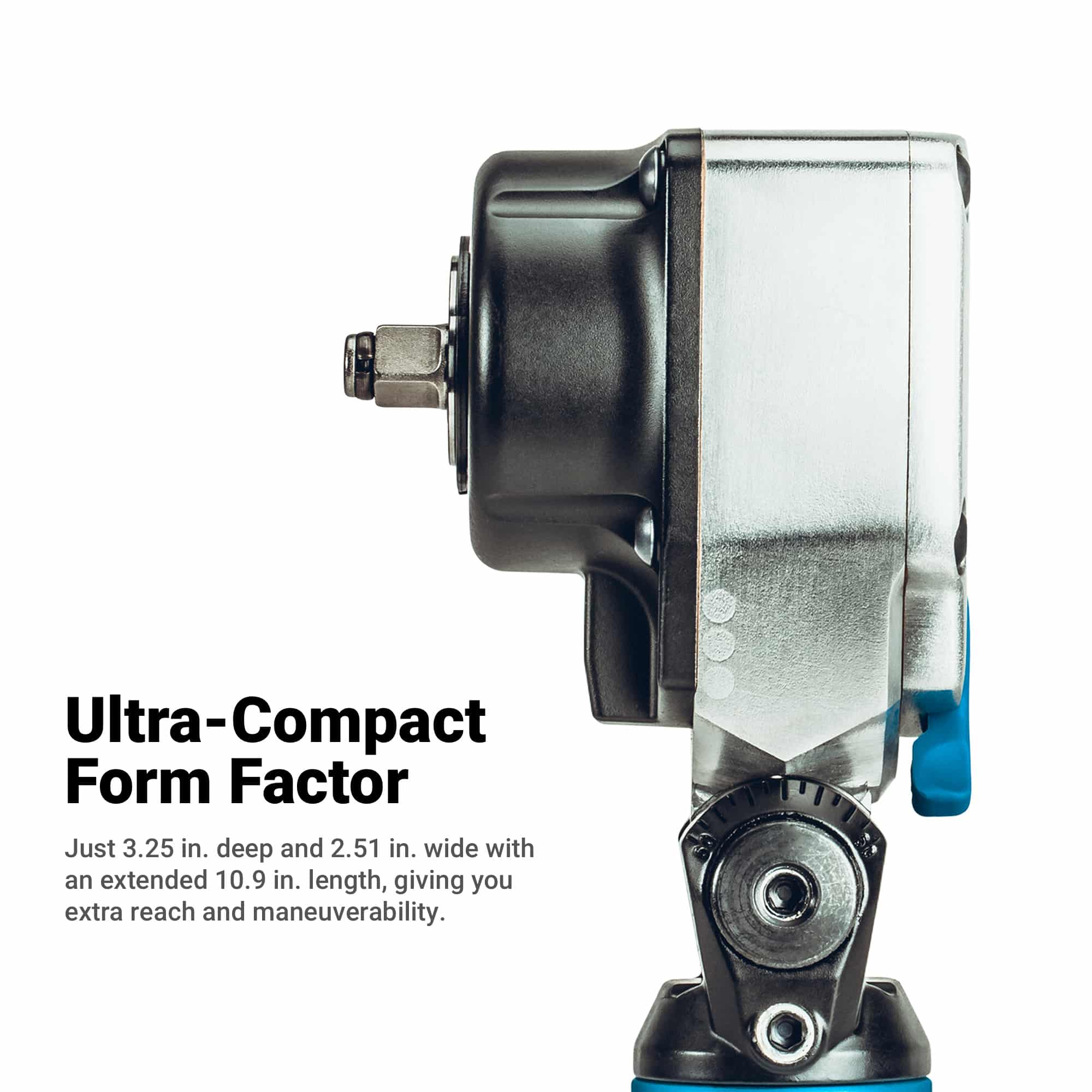

Ultra-Compact
Form Factor
It’s flex-head angle design fits into the tightest access points while still delivering full impact performance, the extra reach, and maneuverability.
Length
10.9"
Width
2.5"
Deep
3.2"
One-Hand Operation
One hand operation with large forward/reverse thumb dial: 2 forward and 1 reverse power settings.
Powerhouse Performance
The patented Twin Power Motor design doubles the air intake into the cylinder for more power, balanced and speed.
Specifications
***Nut Busting Torque
960
ft-lbs.
**Maximum Torque
369
ft-lbs.
*Working Torque
332
ft-lbs.
Free Speed
8,500
RPM
Blows Per Min
1,200
BPM
Avg. Air Consumption
4.0
CFM
***Nut Busting Torque: Nuts fastened to the nut busting torque using a torque wrench and a torque multiplier are loosened with the impact wrench within a 30-second time interval.
**Maximum Torque: Reverse torque measured with a torque meter over a 15-second time interval.
*Working Torque: Forward torque measured with a torque meter over a 5-second time interval.
We Stand Behind Our Products 100%, Period.
Description
The Capri Tools Flex-Head Angle Series Angle Impact Wrench is a must have for tackling fasteners in hard-to-reach areas. It has a 120-degree flexible head which is tiltable up to 60° forward and up to 60° backward. letting you easily reach those hidden bolts. 360° rotatable trigger lets you operate the tool in the best position possible. It has an ultra-compact form factor, just 3.25″ deep and 2.51″ wide. The 10.9″ extended length gives you the extra reach you need. It packs a 369 ft. lbs. of maximum reverse torque and 332 ft. lbs. of forward torque, twice powerful than other air angle impact wrenches. One hand operation with large forward/reverse thumb dial. It has a soft grip ergonomic handle for a sure and comfortable grip. It operates quietly at 91.2 dBA and with low air consumption at only 4 CFM at 90 PSI. Weighs only 2.87 lbs. Comes with 1/4″ NPT air inlet.
Technical Data
| Model No. | CP33200 | CP33205 | CP33208 |
|---|---|---|---|
| Drive Size (in.) | 3/8 | 1/2 | 3/4 |
| Nut Busting Torque (ft-lbs) | 369 | 970 | 1,770 |
| Max. Torque (ft-lbs) | 220 | 400 | 738 |
| Working Torque (ft-lbs) | 185 | 333 | 664 |
| Blow Per Min (BPM) | 1,200 | 1,200 | 1,200 |
| Free Speed (RPM) | 9,000 | 8,000 | 7,500 |
| Noise Level (dBA) | 91.2 | 91.2 | 97.7 |
| Vibration Level (m/s2) | 8.56 | 8.56 | 9.2 |
| Avg Air Consumption (CFM) | 2.96 | 4 | 4.5 |
| Air Inlet (NPT) | 1/4" | 1/4" | 1/4" |
| Air Pressure | 90 PSI | 90 PSI | 90 PSI |
| Length (in.) | 10.9 | 10.9 | 12.2 |
| Height (in.) | 3.25 | 3.34 | 4.9 |
| Weight (lbs.) | 2.51 | 2.55 | 2.9 |
