3/4" Dr. Deep Sockets
Impact sockets for trucks and heavy-duty equipment
Built to Last

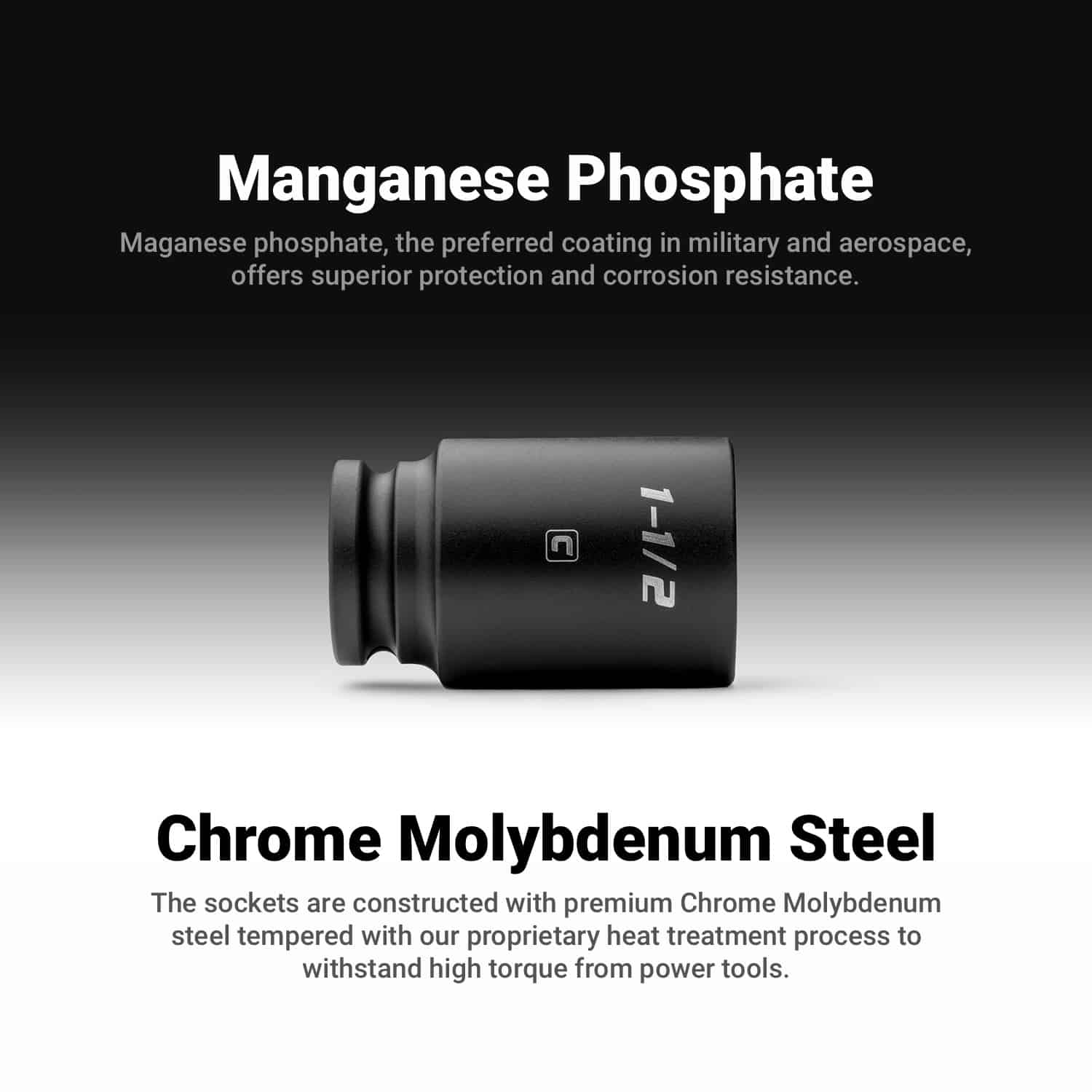

We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these deep impact sockets. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate.

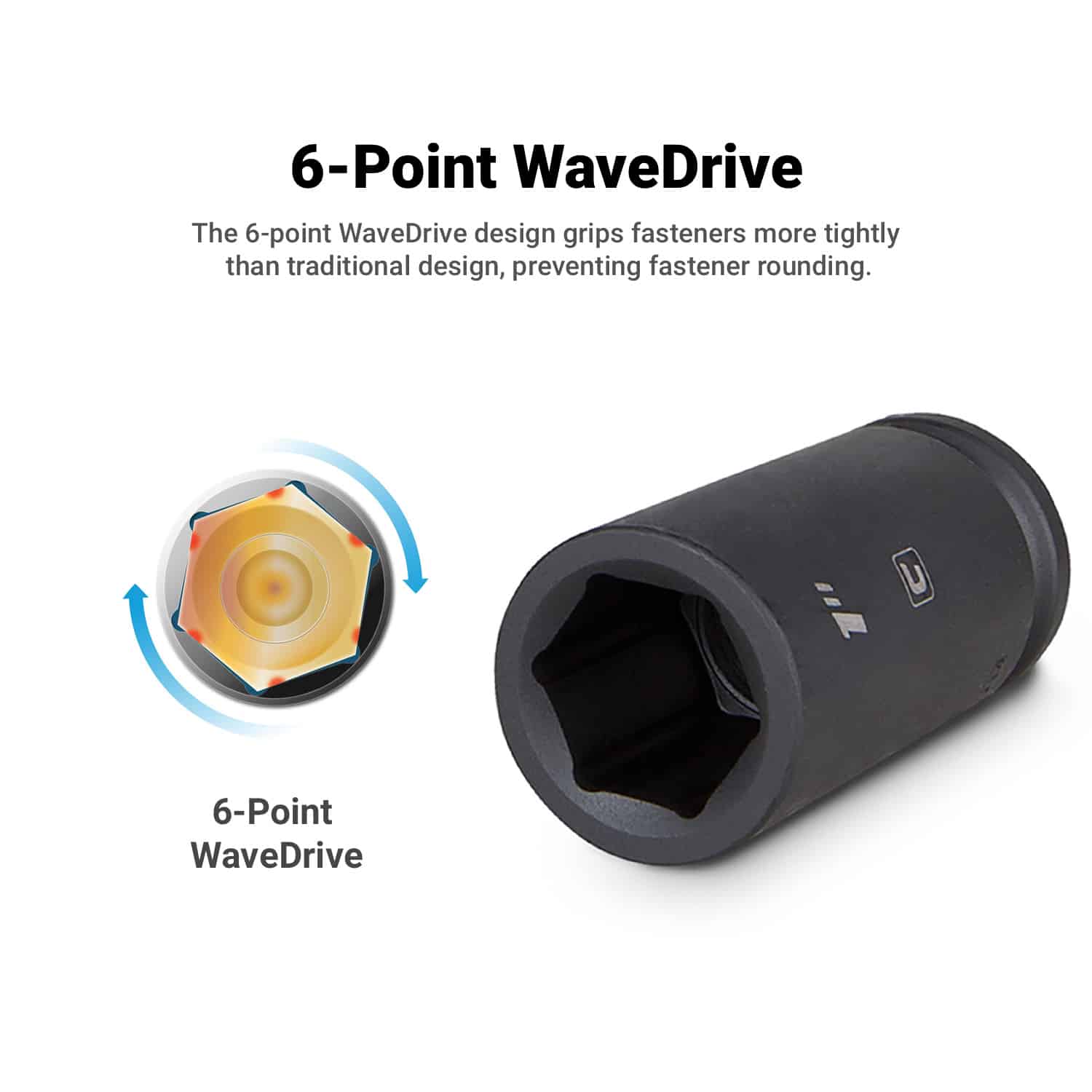

6 Point WaveDrive
The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage.

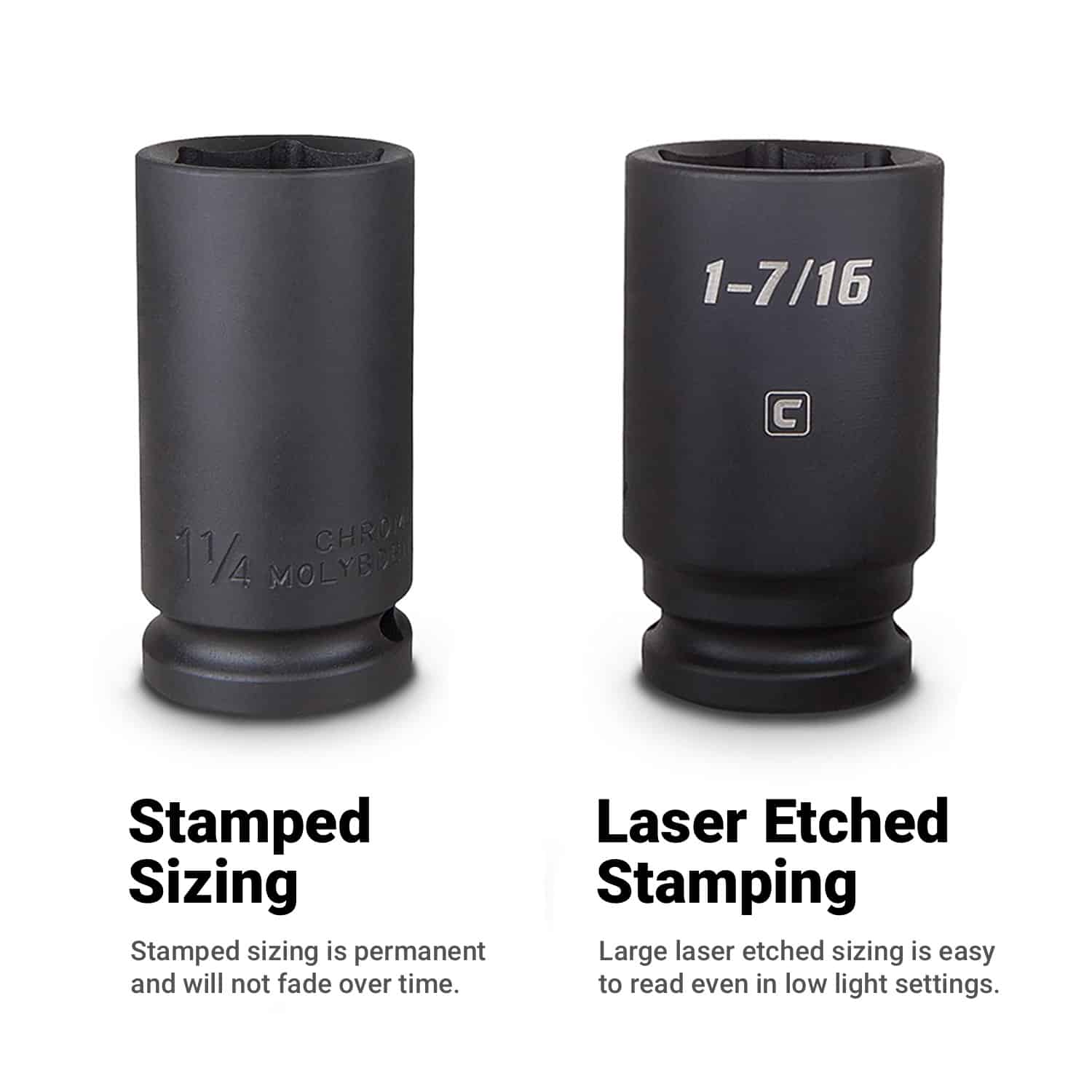

Easy Identification
Large laser etched sizing is easy to read even in low light conditions. Stamped sizing is permanent and will not fade over time.
We Stand Behind Our Products 100%, Period.
Description
A collection of most frequently used deep impact sockets for trucks and heavy equipment. We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these deep impact sockets. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate, the preferred coating in military and aerospace, which offers superior protection and corrosion resistance compared to black oxide coating on other deep impact sockets. The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage. Meets and exceeds ASME B107.110 standards. Size range: 1″, 1-1/16″, 1-1/8″, 1-1/4″, 1-5/16″, 1-3/8″, 1-7/16″, 1-1/2″.
Technical Data
3/4" Deep Impact Sockets, SAE
| Model | Size (in.) | L (in.) | W1 (in.) | W2 (in.) | D1 (in.) | D2 (in.) | wt (lbs.) |
|---|---|---|---|---|---|---|---|
| CP57263 | 1" | 3.35 | 1.57 | 1.57 | 2.27 | 1.48 | 1.1 |
| CP57264 | 1 1/16" | 3.35 | 1.57 | 1.57 | 2.8 | 1.45 | 1.2 |
| CP57265 | 1 1/8" | 3.35 | 1.65 | 1.65 | 2.78 | 1.4 | 1.2 |
| CP57267 | 1 1/4" | 3.35 | 1.73 | 1.73 | 2.79 | 1.4 | 1.2 |
| CP57268 | 1 5/16" | 3.35 | 1.85 | 1.73 | 2.43 | 1.45 | 1.4 |
| CP57269 | 1 3/8" | 3.35 | 1.97 | 1.73 | 2.39 | 1.73 | 1.5 |
| CP57270 | 1 7/16" | 3.35 | 2.01 | 1.73 | 2.4 | 1.46 | 1.5 |
| CP57271 | 1 1/2" | 3.35 | 2.09 | 1.73 | 2.41 | 1.49 | 1.5 |
