Shallow Impact Sockets, 6-Point, Metric

(2 customer reviews)

$5.99$9.99

Shallow Impact Sockets, 6-Point, Metric

$5.99$9.99

-

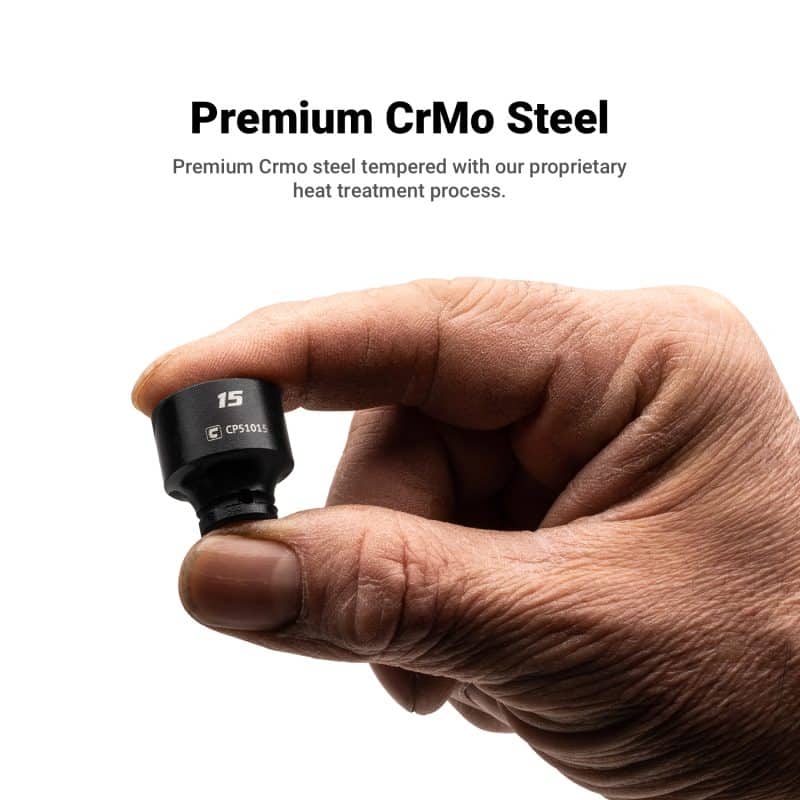

  • Premium Chrome Molybdenum steel tempered with our proprietary heat treatment
  • Coated with manganese phosphate for superior protection and corrosion resistance

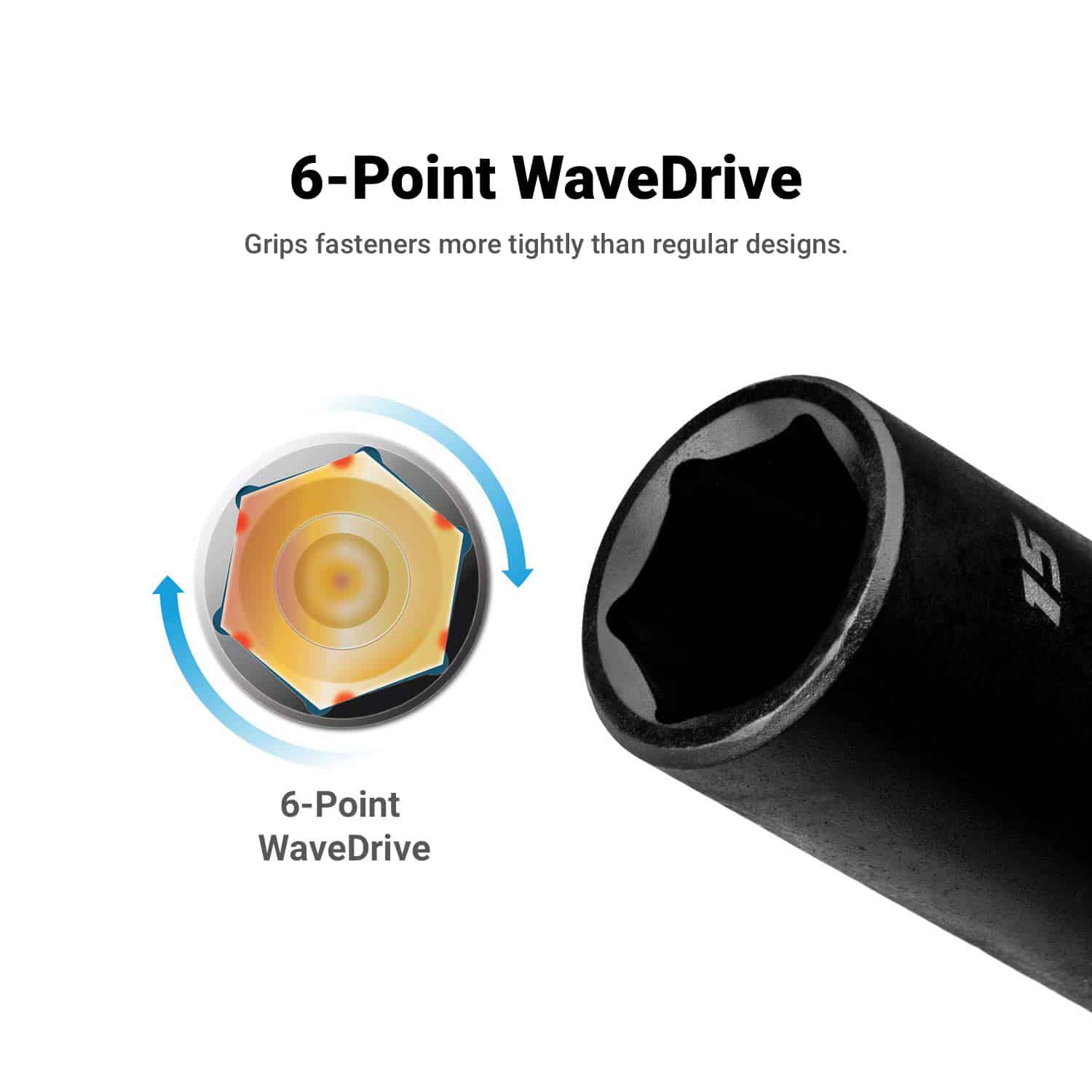

  • 6-point WaveDrive design grips fasteners more tightly
  • Large visible lasered sizing
  • Stamped sizing is permanent and will not fade over time
  • Meets and exceeds ASME B107.110 standards
  • Lifetime guarantee
(2 customer reviews)
Clear

Earn up to 20 Star Rewards.

Free shipping for orders over $25

  • Order yours before 1:30pm (PST) for same day dispatch

Description

Manganese Phosphate

The preferred coating in military and areospace, offers superior protection and corrosion resistant.

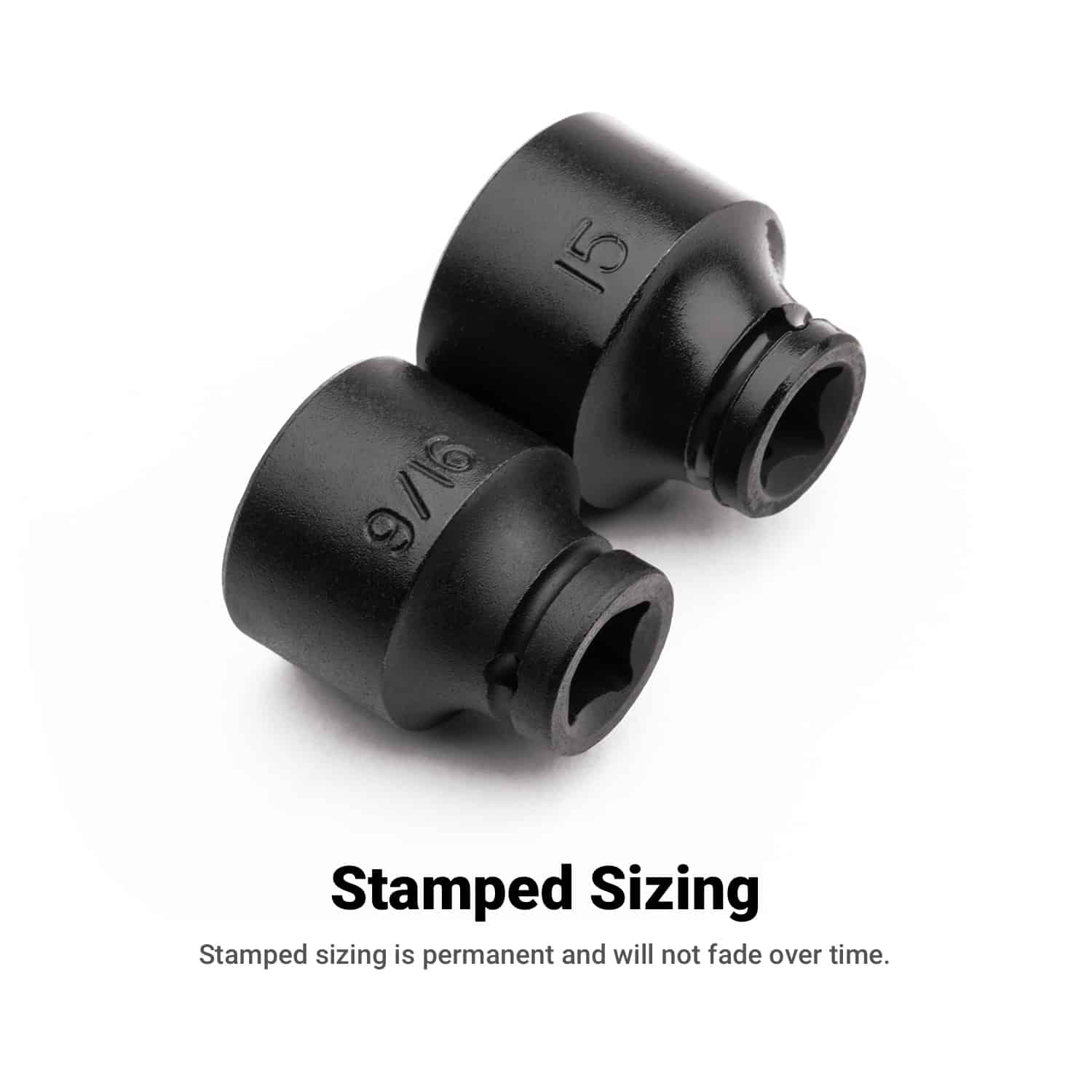

Stamped Sizing

Stamped sizing is permanent and will not fade over time.

Heat Treatment

Heat treated to a hardness range commensurate with their size and configuration.

Description

The Capri Tools Impact Socket is a collection of most frequently used deep impact sockets for trucks and heavy equipment. We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these deep impact sockets. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate, the preferred coating in military and aerospace, which offers superior protection and corrosion resistance compared to black oxide coating on other deep impact sockets. The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage. Meets and exceeds ASME B107.110 standards.

Technical Data

1/4″ Drive, Shallow Impact Sockets, Metric

Part Number Size (mm) W1 (in) W2 (in) L (in) wt. (oz)
CP51004 4 0.30 0.51 0.90 0.40
CP51004.5 4.5 0.32 0.51 0.89 0.40
CP51005 5 0.34 0.51 0.90 0.40
CP51005.5 5.5 0.38 0.51 0.90 0.40
CP51006 6 0.39 0.51 0.90 0.40
CP51007 7 0.45 0.51 0.89 0.40
CP51008 8 0.50 0.51 0.90 0.40
CP51009 9 0.57 0.51 0.91 0.50
CP51010 10 0.63 0.51 0.91 0.60
CP51011 11 0.67 0.51 0.91 0.60
CP51012 12 0.71 0.51 0.90 0.70
CP51013 13 0.75 0.51 0.90 0.70
CP51014 14 0.78 0.51 0.91 0.80
CP51015 15 0.86 0.51 0.90 0.90

3/8″ Drive, Shallow Impact Sockets, Metric

Part Number Size (mm) D1 (in.) D2 (in.) L (in.) wt. (lbs.)
CP53008 8 0.50 0.75 1.16 0.07
CP53009 9 0.55 0.75 1.16 0.07
CP53010 10 0.60 0.75 1.16 0.07
CP53011 11 0.67 0.75 1.16 0.08
CP53012 12 0.75 0.75 1.16 0.09
CP53013 13 0.79 0.79 1.16 0.10
CP53014 14 0.83 0.83 1.16 0.12
CP53015 15 0.87 0.87 1.16 0.12
CP53016 16 0.93 0.93 1.18 0.15
CP53017 17 0.94 0.94 1.18 0.15
CP53018 18 0.98 0.98 1.18 0.15
CP53019 19 1.02 1.02 1.18 0.16
CP53020 20 1.09 1.09 1.18 0.20
CP53021 21 1.10 1.10 1.18 0.23
CP53022 22 1.18 1.18 1.18 0.25
CP53023 23 1.25 1.25 1.18 0.28
CP53024 24 1.26 1.26 1.18 0.31

1/2″ Drive, Shallow Impact Sockets, Metric

Part Number Size (mm) D1 (in.) D2 (in.) L (in.) wt. (lbs.)
CP55010 10 0.66 0.87 1.50 0.14
CP55011 11 0.74 0.87 1.50 0.14
CP55012 12 0.75 0.87 1.50 0.14
CP55013 13 0.80 0.94 1.50 0.17
CP55014 14 0.85 0.94 1.50 0.17
CP55015 15 0.94 0.94 1.50 0.19
CP55016 16 0.98 0.98 1.50 0.19
CP55017 17 1.02 1.02 1.50 0.21
CP55018 18 1.02 1.02 1.50 0.22
CP55019 19 1.10 1.10 1.50 0.23
CP55020 20 1.18 1.18 1.50 0.28
CP55021 21 1.18 1.18 1.50 0.28
CP55022 22 1.26 1.26 1.50 0.32
CP55023 23 1.26 1.23 1.50 0.36
CP55024 24 1.34 1.34 1.50 0.40
CP55025 25 1.41 1.41 1.50 0.45
CP55026 26 1.42 1.42 1.50 0.55
CP55027 27 1.49 1.49 1.50 0.60

Additional information

Weight N/A
Dimensions N/A
Drive Size

, ,

Size

4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 21 mm, 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm

Socket Length

Unit

Socket Point

Warranty

2 reviews for Shallow Impact Sockets, 6-Point, Metric

  1. e.rivera2009

    These are some tough solid beefy built sockets no joke. Ordered a single shallow impact 14mm socket. Came super fast ordered from Amazon. It came in a small cool bag. I am keeping the little bag and putting small stuff inside of it to keep it in my tool bag that has outside pockets. Be aware the finish on these impact sockets are a flat black. Pictures make them look a little semi gloss but they are flat black finish. Tough sockets.

  2. wjswicegood (verified owner)

    Very high quality sockets with a very good price from a company that goes above and beyond to provide great customer service.

Add a review
