Deep Impact Socket, 6-Point, Metric

(5 customer reviews)

$6.99$16.99

Deep Impact Socket, 6-Point, Metric

$6.99$16.99

-

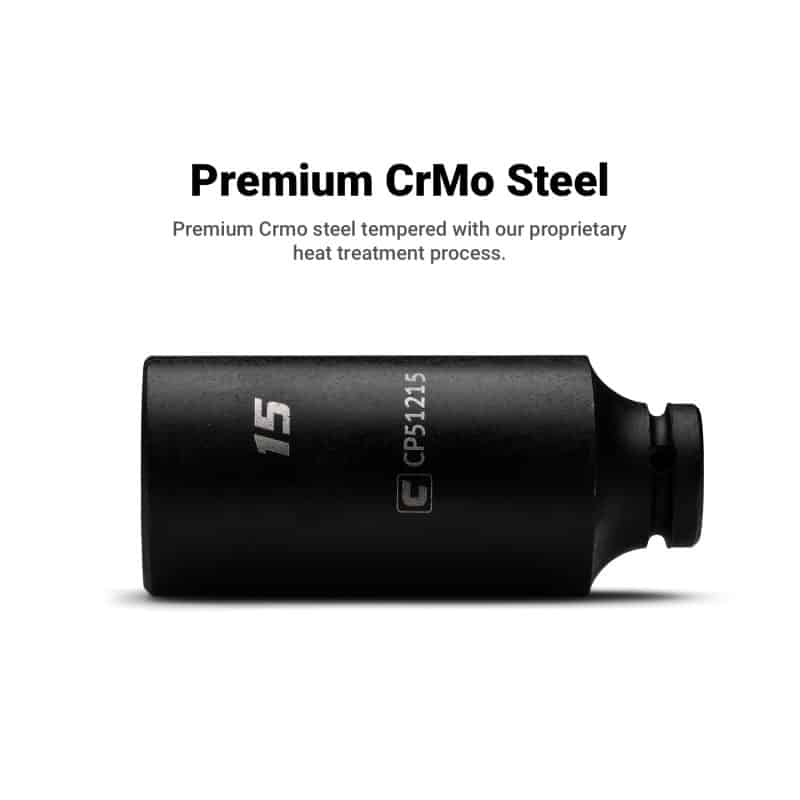

  • Premium Chrome Molybdenum steel tempered with our proprietary heat treatment
  • Coated with manganese phosphate for superior protection and corrosion resistance

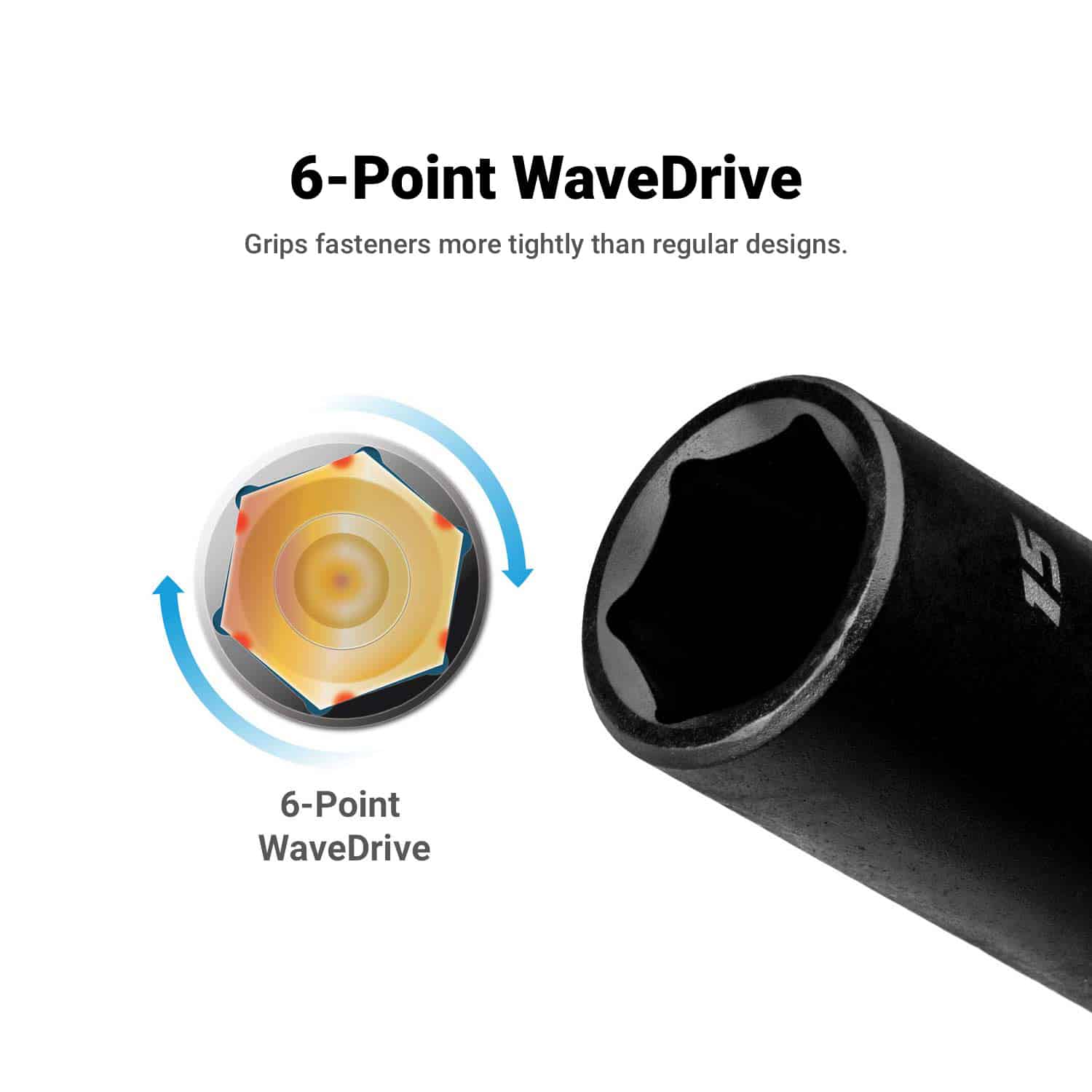

  • 6-point WaveDrive design grips fasteners more tightly

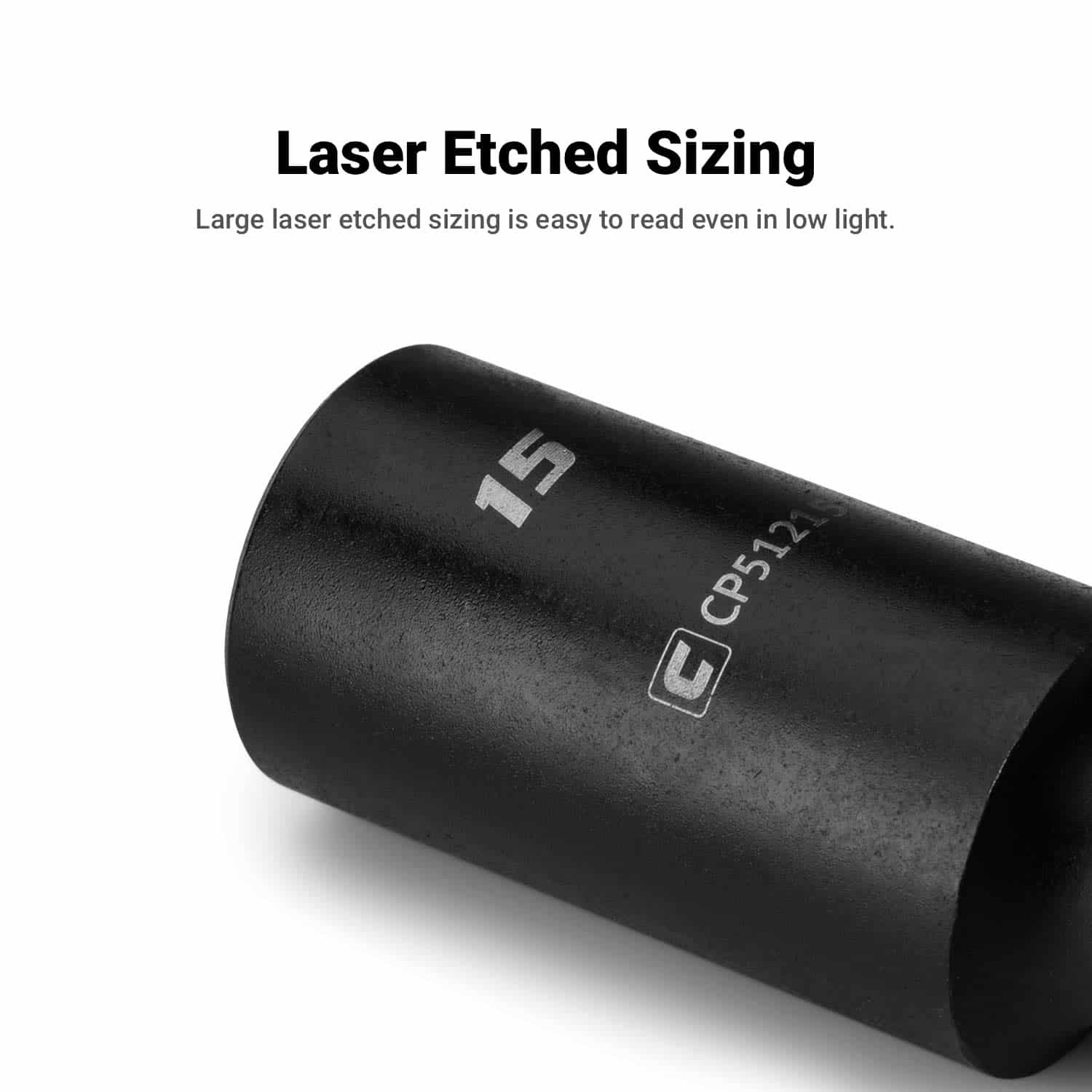

  • Large visible lasered sizing
  • Stamped sizing is permanent and will not fade over time
  • Meets and exceeds ASME B107.110 standards
  • Lifetime guarantee
(5 customer reviews)
Clear

Earn up to 34 Star Rewards.

Free shipping for orders over $25

  • Order yours before 1:30pm (PST) for same day dispatch

Description

Manganese Phosphate

The preferred coating in military and aerospace, offers superior protection and corrosion resistant.

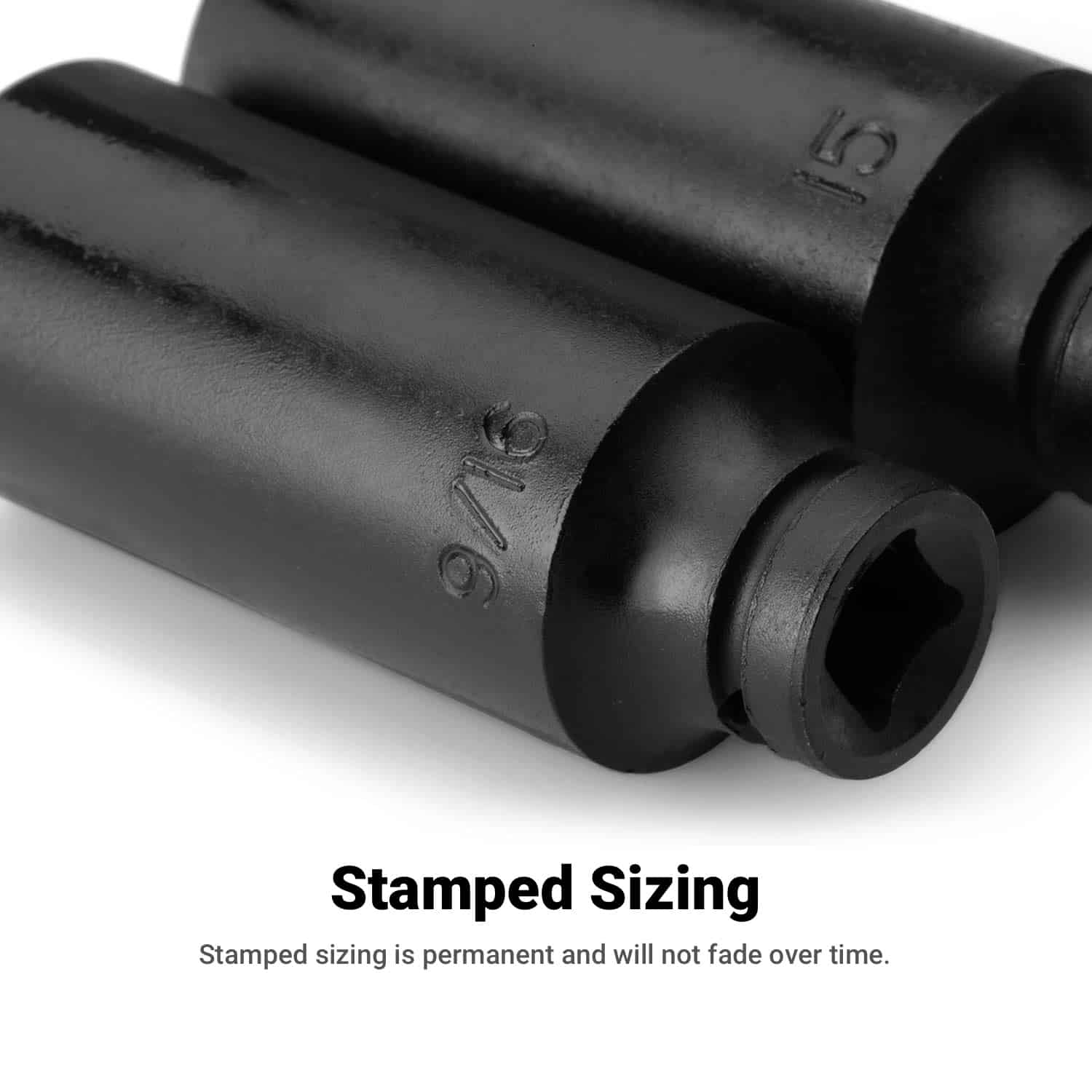

Stamped Sizing

Stamped sizing is permanent and will not fade over time.

Heat Treatment

Heat treated to a hardness range commensurate with their size and configuration.

Description

The Capri Tools Impact Socket is a collection of most frequently used deep impact sockets for trucks and heavy equipment. We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these deep impact sockets. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate, the preferred coating in military and aerospace, which offers superior protection and corrosion resistance compared to black oxide coating on other deep impact sockets. The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage. Meets and exceeds ASME B107.110 standards.

Technical Data

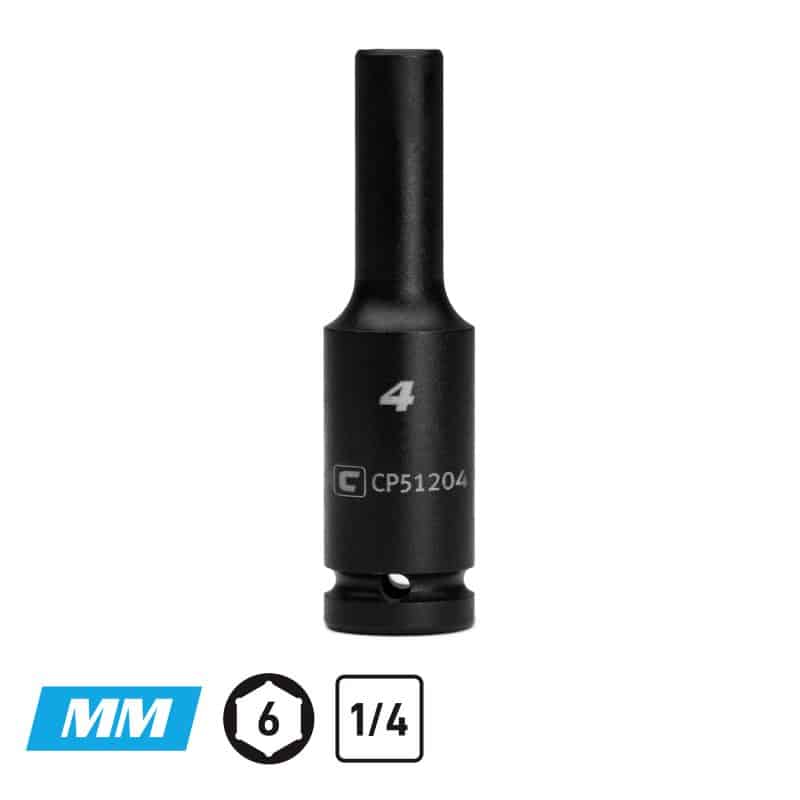

1/4″ Drive, Deep Impact Sockets, Metric

Part Number Size (mm) W1 (in) W2 (in) L (in) wt. (oz)
CP51204 4 0.29 0.51 2.00 0.80
CP51204.5 4.5 0.32 0.51 2.00 0.80
CP51205 5 0.34 0.51 2.00 0.80
CP51205.5 5.5 0.37 0.51 2.00 0.90
CP51206 6 0.39 0.51 2.00 0.90
CP51207 7 0.41 0.51 2.00 0.90
CP51208 8 0.49 0.51 2.00 1.00
CP51209 9 0.57 0.51 2.00 1.20
CP51210 10 0.62 0.51 2.00 1.40
CP51211 11 0.67 0.51 2.00 1.50
CP51212 12 0.70 0.51 2.00 1.60
CP51213 13 0.74 0.51 2.00 1.70
CP51214 14 0.78 0.51 2.00 1.80
CP51215 15 0.86 0.51 2.00 2.30

3/8″ Drive, Deep Impact Sockets, Metric

Part Number Size (mm) D1 (in.) D2 (in.) L (in.) wt. (lbs.)
CP53208 8 0.50 0.75 2.52 0.20
CP53209 9 0.55 0.75 2.52 0.20
CP53210 10 0.60 0.75 2.52 0.20
CP53211 11 0.67 0.75 2.52 0.20
CP53212 12 0.75 0.75 2.52 0.20
CP53213 13 0.79 0.79 2.52 0.21
CP53214 14 0.83 0.83 2.52 0.21
CP53215 15 0.87 0.87 2.52 0.24
CP53216 16 0.93 0.93 2.52 0.28
CP53217 17 0.94 0.94 2.52 0.29
CP53218 18 0.98 0.98 2.52 0.32
CP53219 19 1.02 1.02 2.52 0.34
CP53220 20 1.09 1.09 2.52 0.35
CP53221 21 1.10 1.10 2.52 0.38
CP53222 22 1.18 1.18 2.52 0.45
CP53223 23 1.25 1.25 2.52 0.47
CP53224 24 1.26 1.26 2.52 0.51

1/2″ Drive, Deep Impact Sockets, Metric

Part Number Size (mm) D1 (in.) D2 (in.) L (in.) wt. (lbs.)
CP55210 10 0.66 0.87 3.07 0.33
CP55211 11 0.74 0.87 3.07 0.34
CP55212 12 0.75 0.87 3.07 0.34
CP55213 13 0.80 0.94 3.07 0.37
CP55214 14 0.85 0.94 3.07 0.38
CP55215 15 0.94 0.94 3.07 0.39
CP55216 16 0.98 0.98 3.07 0.40
CP55217 17 1.02 1.02 3.07 0.42
CP55218 18 1.02 1.02 3.07 0.43
CP55219 19 1.10 1.10 3.07 0.49
CP55220 20 1.18 1.18 3.07 0.54
CP55221 21 1.18 1.18 3.07 0.57
CP55222 22 1.26 1.26 3.07 0.63
CP55223 23 1.26 1.23 3.07 0.64
CP55224 24 1.34 1.34 3.07 0.69
CP55225 25 1.41 1.41 3.07 0.84
CP55226 26 1.42 1.42 3.07 0.84
CP55227 27 1.49 1.49 3.07 0.94
CP55229 29 1.57 1.57 3.07 1.03
CP55230 30 1.66 1.50 3.07 1.11
CP55231 31 1.70 1.50 3.07 1.11
CP55232 32 1.73 1.50 3.07 1.11
CP55233 33 1.80 1.50 3.07 1.11
CP55234 34 1.88 1.50 3.07 1.15
CP55235 35 1.88 1.50 3.07 1.15
CP55236 36 1.96 1.50 3.07 1.22

Additional information

Weight N/A
Dimensions N/A
Drive Size

, , ,

Size

4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 21 mm, 22 mm, 23mm, 24 mm, 25 mm, 26 mm, 27 mm, 29 mm, 30 mm, 32 mm, 33 mm, 34 mm, 35 mm, 36 mm

Socket Length

Socket Point

Unit

Warranty

5 reviews for Deep Impact Socket, 6-Point, Metric

  1. shannonvance1977 (verified owner)

    Great service so far with Capri. The socket is very well made. Fits the fastener well and the impact drive. After some use I wiped off the rust and can’t even tell where I used it. I’m very impressed with the company and product/prices.now trying to buy Capri tools only.

  2. seanis52 (verified owner)

    Got the 19mm in a promo and it will be staying on my impact from now on good finish and stamped size

  3. Bedford Teague (verified owner)

    I’m very glad that I discovered Capri tools. I recently bought some sockets directly from them and from other vendors. When I dealt directly with them I got excellent customer service. I like the fact that the sockets come individually packaged. I like the fact that they use the right metal to reduce the chance that the socket will shatter. I think they’re really smart too in the way that they’re offering these organizers he selected a small company that just does a wonderful job has a great product so you get a great socket and you get a great way to store it why not buy from Capri and did I mention I got great customer service so there’s that

  4. wjswicegood (verified owner)

    These are the exact same sockets that Matco offers in their ADV line but Capri offers them for significantly less. You’ll find them to be a very good value.

  5. wjswicegood (verified owner)

    Exact same sockets that Matco offers in the ADV line but significantly cheaper through Capri.

Add a review
