3/8" Dr. Stubby Impact Sockets
Up to 20% shorter than standard length sockets
The Extra Clearance
The stubby impact sockets are about 20% shorter than standard shallow sockets. This makes them ideal for accessing those hard-to-reach areas where shallow sockets don’t work and deep sockets just won’t fit.
Stubby
1"
Standard
1.2"

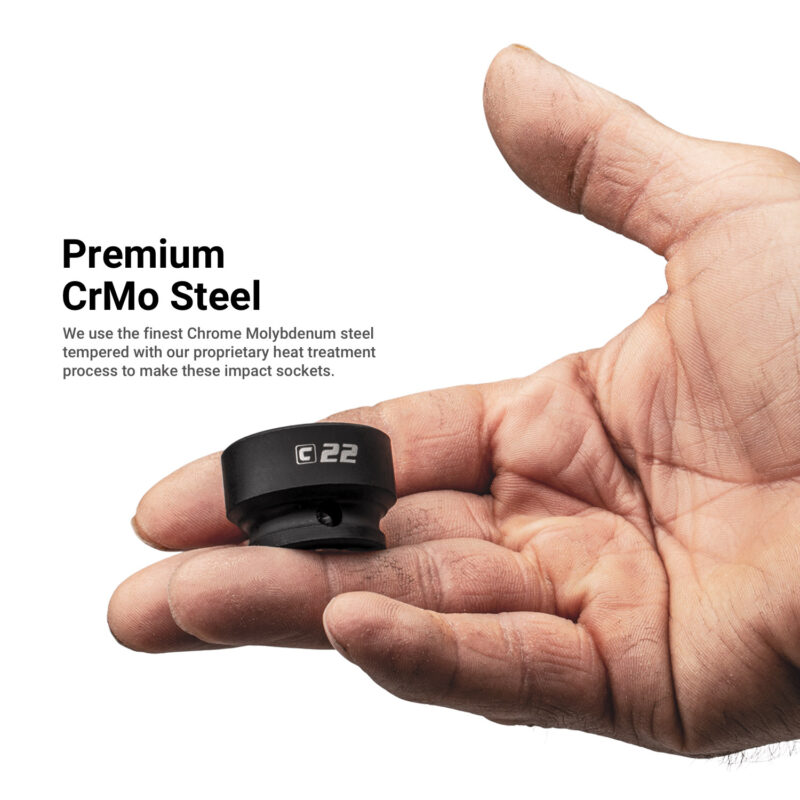

Superior Craftsmanship
We use the finest Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these impact sockets. They are coated using manganese phosphate coating for added resilience against corrosion.
6-Point WaveDrive
The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage.
Easy Identification
Each of our impact sockets comes with its size displayed prominently by a large laser-etched and stamped indications for easy identification.
We Stand Behind Our Products 100%, Period.
Contents
3/8" Dr. Stubby Impact Sockets (15)
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm
Description
The Capri Tools 3/8 in. Drive Stubby Impact Socket Set is perfect for working in tight spots. The stubby size is 20% shorter than shallow length sockets. We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these impact sockets and accessories. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate, the preferred coating in military and aerospace, which offers superior protection and corrosion resistance compared to black oxide coating on other impact sockets. The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage. Meets and exceeds ASME B107.110 standards. 15-piece set includes 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, and 22 mm.
Technical Data
| Part Number | Drive | Sizes | l (in.) | w (in.) | wt (lbs.) |
|---|---|---|---|---|---|
| CP53425 | 3/8" | 8 - 22 mm (Metric) | 10.50 | 2.55 | 1.15 |
| CP53450 | 3/8" | 5/16" - 1" (SAE) | 10.50 | 2.55 | 1.10 |
Open Stock
| Model | Size (mm) | L (in.) | W1 (in.) | W2 (in.) | D1 (in.) | D2 (in.) | wt (lbs.) |
|---|---|---|---|---|---|---|---|
| CP53428 | 8 | 0.86 | 0.5 | 0.7 | 0.3 | 0.24 | 0.04 |
| CP53429 | 9 | 0.86 | 0.56 | 0.7 | 0.29 | 0.23 | 0.04 |
| CP53430 | 10 | 0.86 | 0.61 | 0.69 | 0.29 | 0.22 | 0.04 |
| CP53431 | 11 | 0.86 | 0.66 | 0.7 | 0.28 | 0.22 | 0.04 |
| CP53432 | 12 | 0.86 | 0.69 | 0.7 | 0.56 | 0.2 | 0.05 |
| CP53433 | 13 | 0.86 | 0.77 | 0.78 | 0.56 | 0.22 | 0.06 |
| CP53434 | 14 | 0.86 | 0.85 | 0.85 | 0.59 | 0.38 | 0.07 |
| CP53435 | 15 | 0.86 | 0.94 | 0.93 | 0.57 | 0.32 | 0.1 |
| CP53436 | 16 | 0.86 | 0.93 | 0.93 | 0.57 | 0.33 | 0.09 |
| CP53437 | 17 | 0.86 | 1.01 | 1.01 | 0.57 | 0.3 | 0.09 |
| CP53438 | 18 | 0.86 | 1.09 | 1.09 | 0.58 | 0.37 | 0.13 |
| CP53439 | 19 | 0.86 | 1.09 | 1.09 | 0.55 | 0.33 | 0.16 |
| CP53440 | 20 | 0.87 | 1.17 | 1.02 | 0.48 | 0.3 | 0.14 |
| CP53441 | 21 | 0.87 | 1.17 | 1.03 | 0.5 | 0.33 | 0.16 |
| CP53442 | 22 | 0.87 | 1.24 | 1.02 | 0.46 | 0.28 | 0.15 |
gloveguy63 (verified owner) –
These sockets are perfect for tight areas and are a great addition for those who work on late model vehicles . I used them immediately and found them to provide extremely good engagement on the hex and drive surfaces. Very well made products and the foam socket organizer is a great idea.
albertballew.ab (verified owner) –
So far so good they fit in tight spaces . Good for headers on a hot rod fit in perfect
dcb2guf (verified owner) –
Where have these been all my life? I had jobs ready the day they arrived and suddenly hard problems in tight spaces were solved. Even 28 year old exhaust pipe bolts came loose without getting damaged!
