1/4″ Master Impact Socket Set, 4 – 15 mm

Name: 1/4" Master Impact Socket Set, 4 - 15 mm
SKU: CP51000-28MSD
Availability: OutOfStock
Rating: 5.00 (1 reviews)

$49.99

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

The 1/4 in. Drive Master Metric Impact Socket Set is a complete collection of most frequently used sockets and accessories. Premium Chrome Molybdenum steel tempered with our proprietary heat treatment. Expertly coated with manganese phosphate for superior protection and corrosion resistance. 6-point WaveDrive. Meets and exceeds ASME B107.110 standards.

This master set includes:

(14) Shallow (Metric): 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm
(14) Deep (Metric): 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm

Out of stock

Add to wishlist

SKU: CP51000-28MSD Categories: 1/4" Drive Impact Sockets, Impact Socket Sets, Impact Sockets

Gallery
Description
Additional information
Reviews 1

1/4" Dr. Master Impact Socket Set

Tough. Durable. Made to Last.

Built to Last

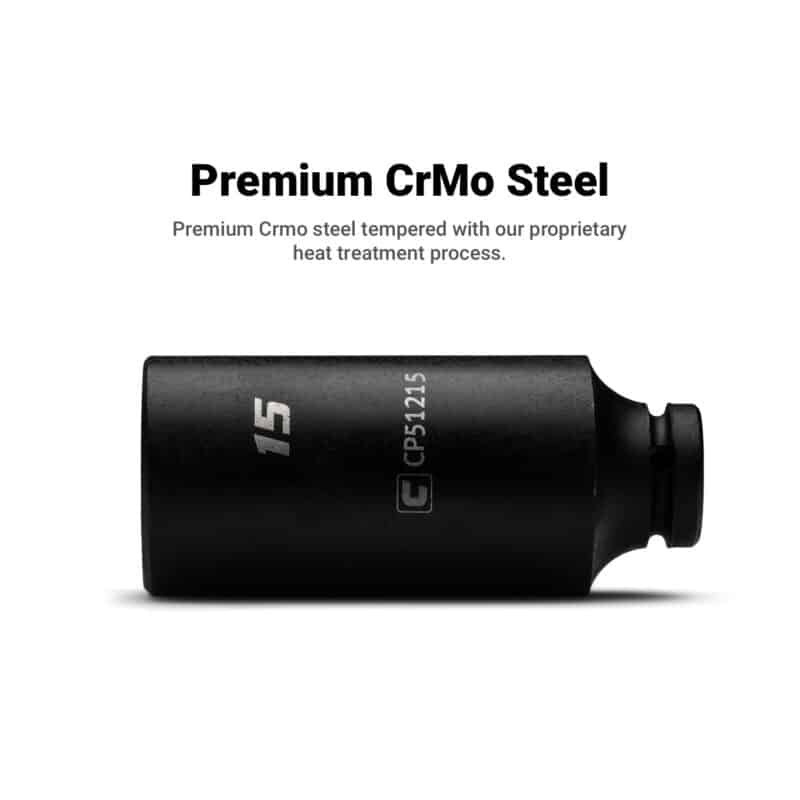

We use premium Chrome Molybdenum steel tempered with our proprietary heat treatment process to make these impact sockets and accessories. They are durable and specifically made to withstand high torque from power tools. Each item is expertly coated with manganese phosphate, the preferred coating in military and aerospace, which offers superior protection and corrosion resistance.

6 Point WaveDrive

The 6-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage.

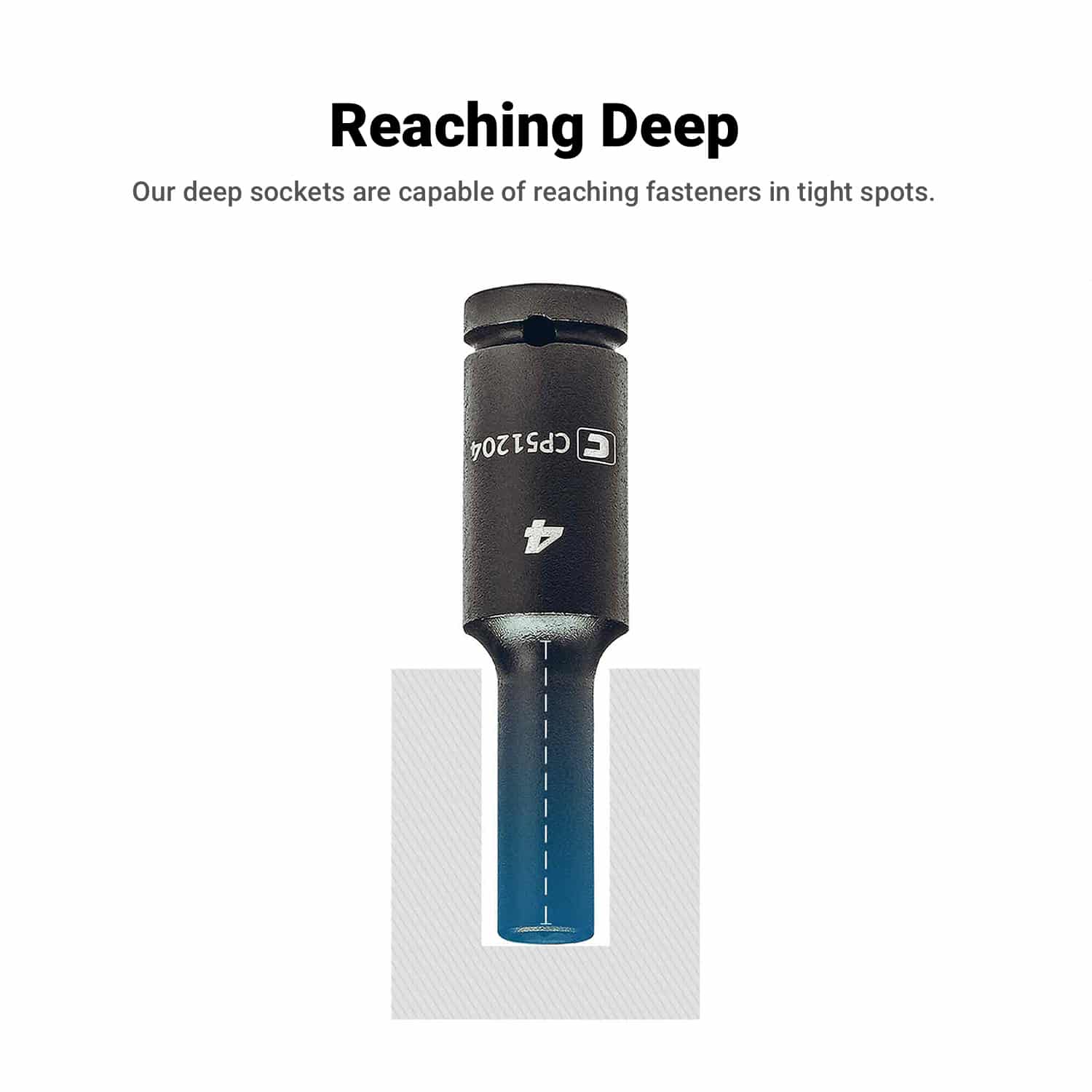

Reaching Deep

The deep sockets in smaller sizes with narrower shoulder provide access to tight areas.

Technical Data

Part Number	Description	L (in.)	W (in.)	wt (lbs.)
CP51000-28MSD	1/4" Drive Master Impact Socket Set	13.25	9.50	5.00

Open Stock

1/4" Shallow Impact Sockets, 6-Point, Metric

Model	Size (mm)	L (in.)	W1 (in.)	W2 (in.)	D1 (in.)	D2 (in.)	wt (lbs.)
CP51004	4 mm	0.9	0.29	0.5	0.27	0.37	0.05
CP51004.5	4.5 mm	0.9	0.31	0.5	0.27	0.43	0.05
CP51005	5 mm	0.9	0.34	0.5	0.27	0.42	0.05
CP51005.5	5.5 mm	0.9	0.38	0.5	0.27	0.41	0.05
CP51006	6 mm	0.9	0.39	0.5	0.27	0.42	0.05
CP51007	7 mm	0.9	0.44	0.5	0.27	0.42	0.05
CP51008	8 mm	0.9	0.49	0.5	0.27	0.42	0.05
CP51009	9 mm	0.9	0.56	0.51	0.51	0.32	0.05
CP51010	10 mm	0.9	0.62	0.51	0.5	0.4	0.05
CP51011	11 mm	0.9	0.66	0.51	0.5	0.4	0.05
CP51012	12 mm	0.9	0.7	0.51	0.5	0.38	0.05
CP51013	13 mm	0.9	0.74	0.51	0.5	0.4	0.05
CP51014	14 mm	0.91	0.77	0.51	0.5	0.39	0.05
CP51015	15 mm	0.91	0.86	0.51	0.5	0.4	0.05

1/4" Deep Impact Sockets, 6-Point, Metric

Model	Size (mm)	L (in.)	W1 (in.)	W2 (in.)	D1 (in.)	D2 (in.)	wt (lbs.)
CP51204	4 mm	1.96	0.29	0.51	0.95	0.29	0.05
CP51204.5	4.5 mm	1.96	0.32	0.51	0.95	0.31	0.05
CP51205	5 mm	1.96	0.34	0.51	0.95	0.32	0.05
CP51205.5	5.5 mm	1.96	0.36	0.51	0.92	0.35	0.05
CP51206	6 mm	1.96	0.39	0.51	0.96	0.33	0.05
CP51207	7 mm	1.96	0.39	0.51	0.95	0.32	0.05
CP51208	8 mm	1.96	0.49	0.51	0.93	0.78	0.1
CP51209	9 mm	1.96	0.57	0.51	1.57	0.69	0.1
CP51210	10 mm	1.96	0.62	0.51	1.57	0.7	0.1
CP51211	11 mm	1.96	0.66	0.51	1.57	0.7	0.1
CP51212	12 mm	1.96	0.7	0.51	1.58	0.69	0.1
CP51213	13 mm	1.96	0.74	0.51	1.58	0.69	0.1
CP51214	14 mm	1.96	0.78	0.51	1.56	0.7	0.15
CP51215	15 mm	1.96	0.85	0.51	1.58	0.71	0.15

Additional information

Weight	5.0 lbs
Dimensions	13.25 × 9.5 × 3.5 in
Drive Size	1/4"
Size	4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 mm
Socket Point	6 Point
Socket Length	Deep + Shallow
Unit	Metric
Storage	Billet Aluminum Tray
Lifetime Warranty	1

1 review for 1/4″ Master Impact Socket Set, 4 – 15 mm

Rated 5 out of 5
Omar Aleman (verified owner) – April 16, 2023
Nice sockets really durable i bought both metric and sae 1/4 socket sets for daily use as a diesel mechanic
