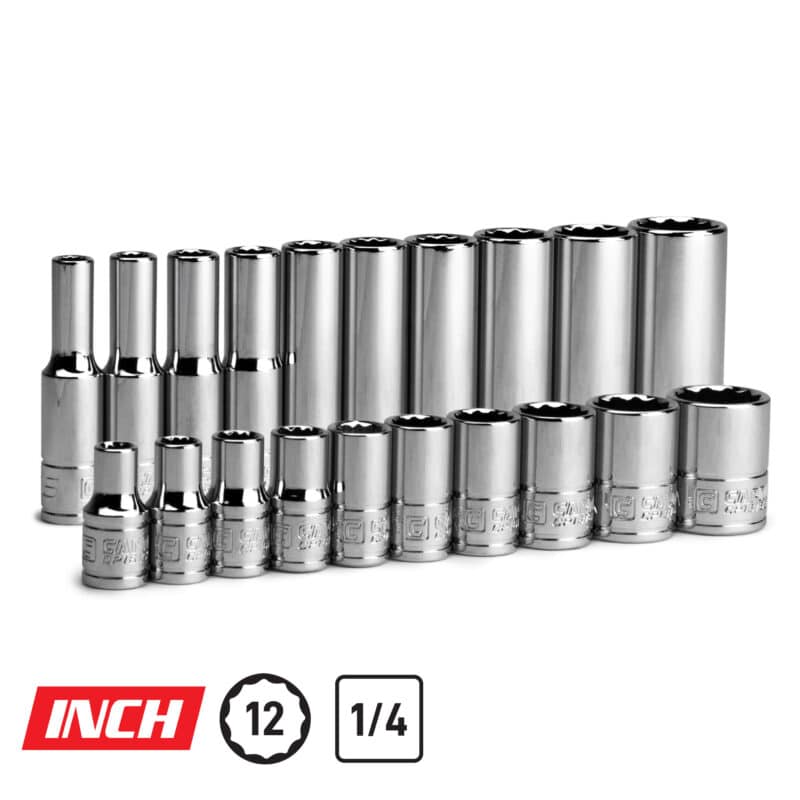

1/4″ 12-Point Master Chrome Sockets Set, 3/16 to 9/16 in., SAE

$29.99

-

The 1/4 in. Drive Master SAE Chrome Socket Set is a complete collection of most frequently used sizes in shallow and deep sockets in 12-point configuration. Optional add-on premium billet aluminum rail for the sockets to stay organized in your drawers. Premium Chrome Vanadium steel tempered with our proprietary heat treatment. Flawless MaxChrome coating for superior protection and corrosion resistance. 12-point WaveDrive. Meets and exceeds ASME B107.110 standards.

This master set includes:

  • (10) Shallow (SAE): 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in.
  • (10) Deep (SAE): 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in.

In stock

Purchase this product now and earn 60 Star Rewards!
1/4″ 12-Point Master Chrome Sockets Set
1/4" 12-Point Master Chrome Sockets Set, 3/16 to 9/16 in., SAE $29.99
This item is selling fast!
SKU: CP16101-20SSD Category:

Free ground shipping on orders over $50

  • Order yours before 1:30 pm PST for same day dispatch
Guaranteed Safe Checkout

1/4" Dr. Master Chrome Socket Set

Made by our most advanced manufacturing process

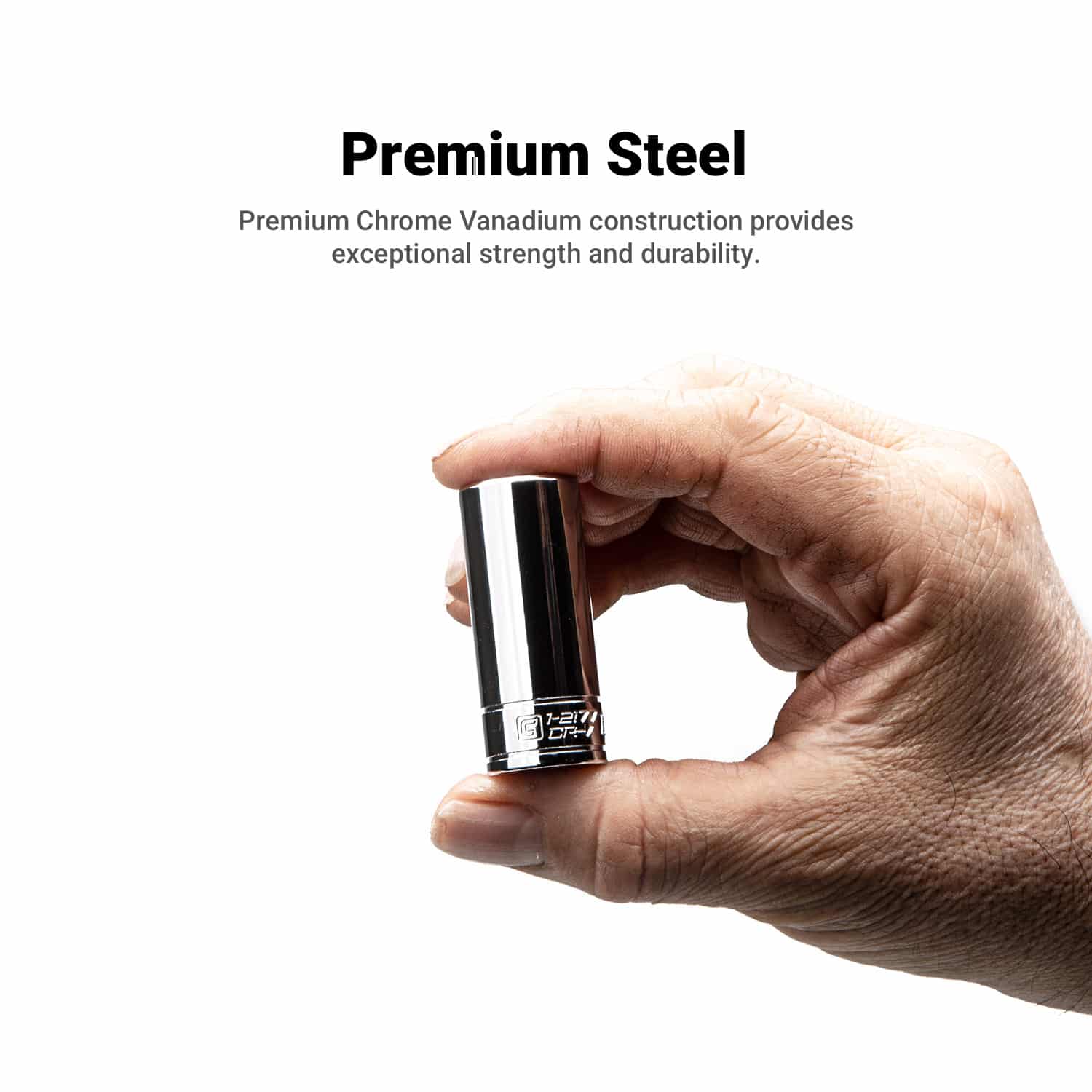

Chrome
Vanadium Steel

Sockets are made with Premium Chrome Vanadium steel tempered with our proprietary heat treatment process to make these sockets durable and able withstand more torque.
CP11750-12pint

12-Point WaveDrive Design

The 12-point WaveDrive design grips fasteners more tightly than traditional design, preventing fastener rounding and giving you more leverage.

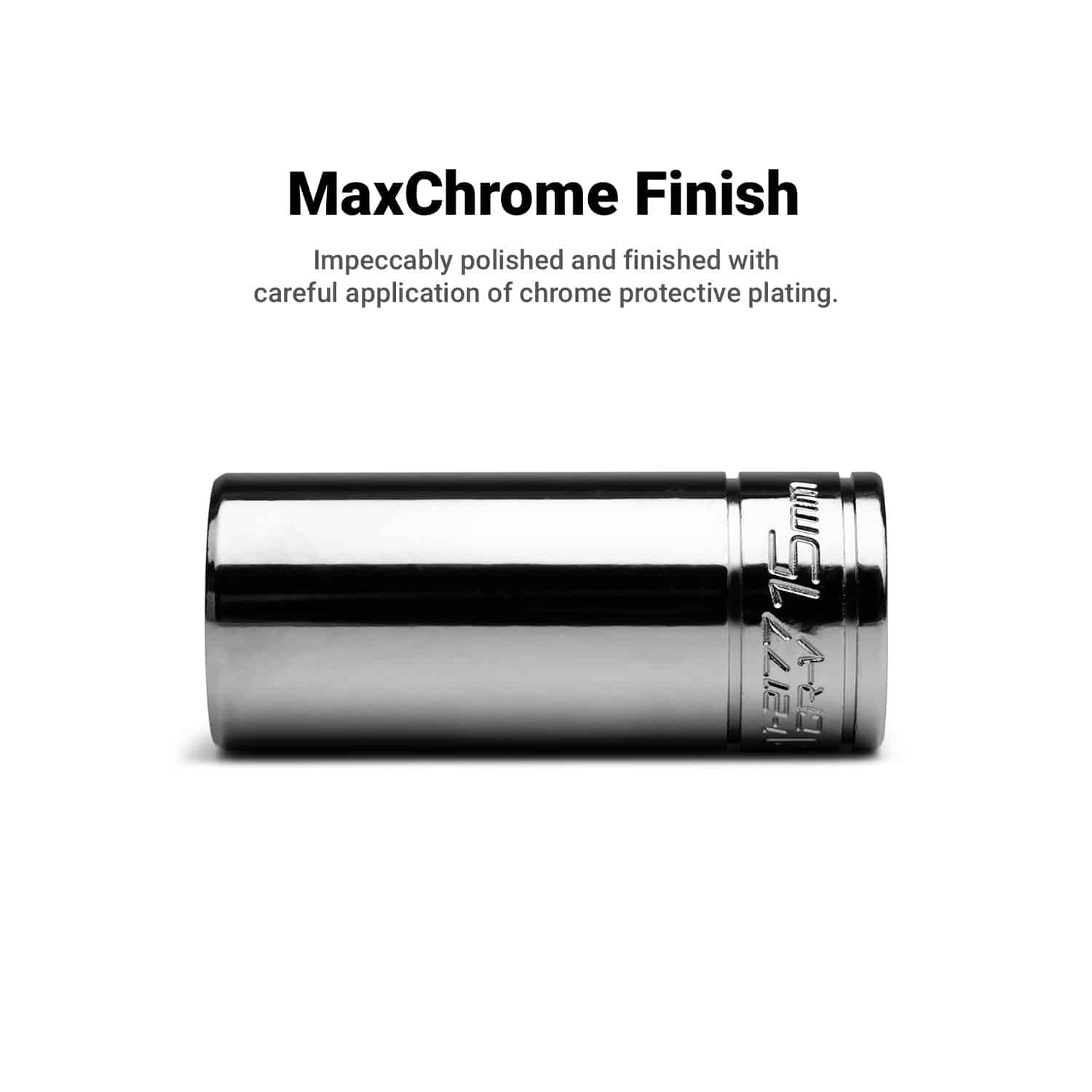

Flawless
MaxChrome Finish

Achieved through thorough polishing and careful application of chrome protective plating, ensures durability and corrosion resistance.

Large Stamped Sizing

The stamped sizing is permanent and will not fade over time.
Reaching Deep

Reaching Deep

The deep sockets in smaller sizes with narrower shoulder provide access to tight areas.

Contents

Shallow Chrome Sockets

3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in.

Deep Chrome Sockets

3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2, 9/16 in.​​

Technical Data

Part Number Drive Length Configuration L (in.) W (in.) wt (lbs.)
CP16101-20SSDR 1/4" Shallow + Deep Aluminum Tray 8.50 2.00 1.50
CP16101-20SSD Sockets Only 1.00

Open Stock

Part Number Size (mm) D1 (in.) D2 (in.) W1 (in.) W2 (in.) L (in.) wt (lbs.)
CP16154 3/16 0.42 0.41 0.31 0.46 0.97 0.01
CP16155 7/32 0.42 0.41 0.35 0.46 0.97 0.01
CP16156 1/4 0.42 0.41 0.37 0.46 0.97 0.01
CP16157 9/32 0.42 0.41 0.42 0.46 0.97 0.01
CP16158 5/16 0.52 0.41 0.46 0.46 0.97 0.01
CP16159 11/32 0.52 0.43 0.50 0.50 0.97 0.01
CP16160 3/8 0.52 0.49 0.54 0.54 0.97 0.02
CP16161 7/16 0.52 0.49 0.62 0.61 0.97 0.03
CP16162 1/2 0.52 0.49 0.69 0.69 0.97 0.01
CP16163 9/16 0.52 0.49 0.77 0.77 0.97 0.06
Part Number Size (mm) D1 (in.) D2 (in.) W1 (in.) W2 (in.) L (in.) wt (lbs.)
CP16178 3/16 0.88 0.40 0.31 0.46 1.94 0.03
CP16179 7/32 0.88 0.40 0.34 0.46 1.95 0.03
CP16180 1/4 0.88 0.70 0.39 0.46 1.95 0.03
CP16181 9/32 0.88 0.83 0.42 0.46 1.95 0.04
CP16182 5/16 1.50 0.83 0.46 0.46 1.95 0.04
CP16183 11/32 1.50 0.83 0.51 0.51 1.96 0.05
CP16184 3/8 1.50 0.83 0.57 0.57 1.96 0.07
CP16185 7/16 1.50 0.83 0.62 0.62 1.96 0.08
CP16183 1/2 1.50 1.00 0.70 0.70 1.96 0.10
CP16187 9/16 1.50 0.96 0.78 0.77 1.96 0.13

Additional information

Weight1.4 lbs
Dimensions8.5 × 4 × 2.5 in
Drive Size

Socket Point

Sizes

5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"

Socket Length

Unit

Storage

Warranty

Lifetime Warranty
